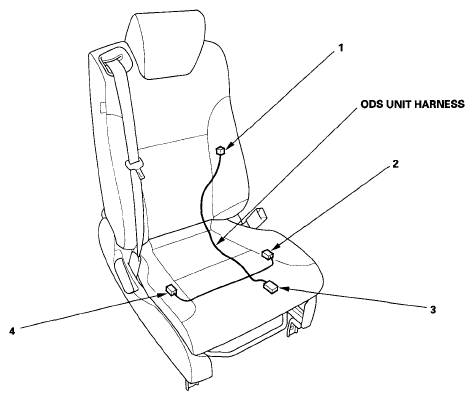

ODS Unit Harness
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Inner side front passenger's weight sensor | 4 | 2 | Under front passenger's seat | ||
| ODS unit | 1 | 18 | In front passenger's seat | ||
| Outer side front passenger's weight sensor | 2 | 3 | Under front passenger's seat | ||
| C560 | 3 | 4 | Under front passenger's seat | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) |
