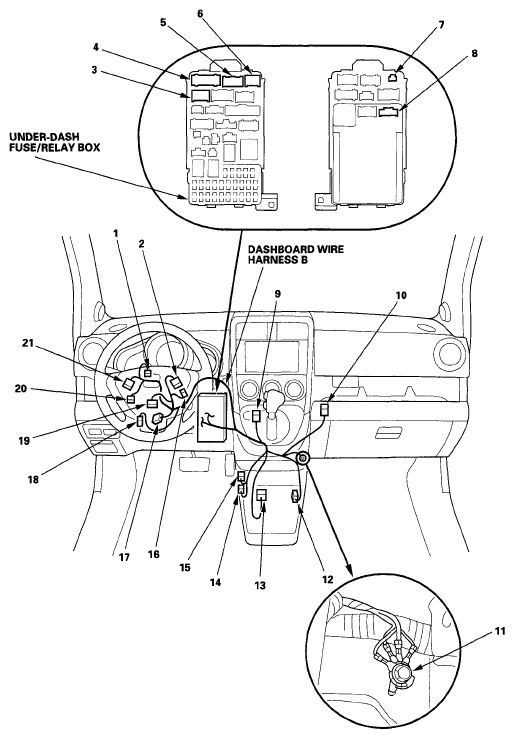

Dashboard Wire Harness B ('09-11 model)
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Cable reel connector A | 18 | 4 | In steering column cover | Driver's airbag inflator | |
| Cable reel connector B | 19 | 13 | In steering column cover | ||
| Combination light switch | 2 | 16 | In steering column cover | ||
| Front passenger's airbag inflator | 10 | 4 | Behind glove box | ||
| Ignition key switch/key light | 1 | 6 | In steering column cover | ||
| Ignition switch | 17 | 7 | In steering column cover | ||
| Immobilizer control unit-receiver | 20 | 7 | In steering column cover | ||
| Multiplex control unit (Fuse/relay box connector X) | 8 | 8 | In the under-dash fuse/relay box | Plugs into MCU (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | |
| SRS unit connector A | 13 | 28 | Under middle of dash | ||
| Steering angle sensor | 16 | 5 | In steering column cover | ||
| Under-dash fuse/relay box connector A (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 5 | 5 | Under left side of dash | ||
| Under-dash fuse/relay box connector B (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 6 | 6 | Under left side of dash | ||
| Under-dash fuse/relay box connector C (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 4 | 14 | Under left side of dash | ||
| Under-dash fuse/relay box connector J (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 3 | 8 | Under left side of dash | ||
| Under-dash fuse/relay box connector S (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 7 | 2 | Under left side of dash | ||
| Wiper/washer switch | 21 | 14 | In the steering column cover | ||
| C401 | 15 | 20 | Under middle of dash | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) ) | |
| C402 | 14 | 16 | Under middle of dash | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) ) | |
| C403 | 9 | 20 | Under middle of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ('09 MODEL) ) | |
| C404 | 12 | 6 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| G401 | 11 | Under middle of dash | Body ground, via dashboard wire harness B |
'09 models
