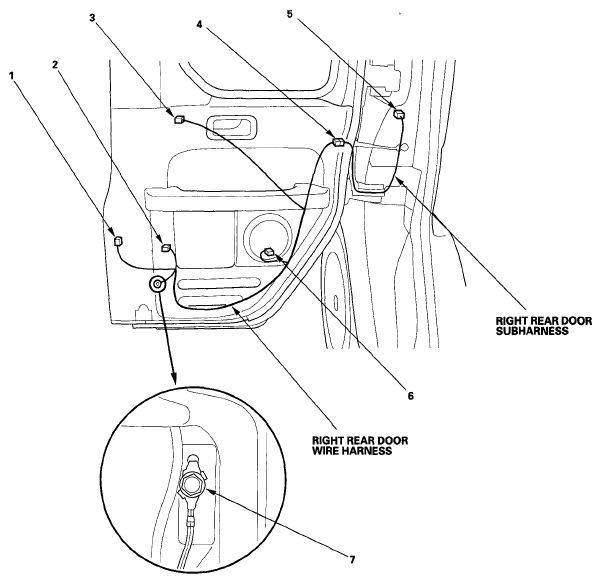

Right Rear Door Subharness
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| C556 | 5 | 6 | Right quarter panel | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C761 | 4 | 6 | Right rear door | Right rear door wire harness |
