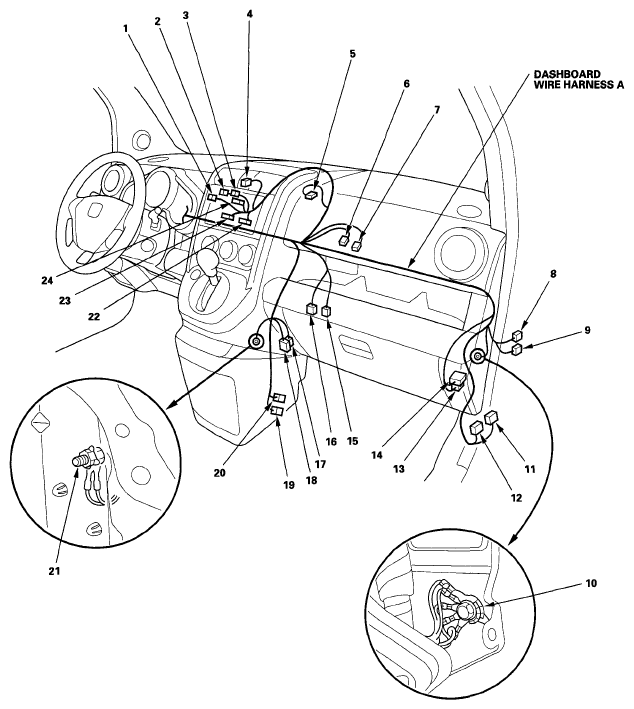

Dashboard Wire Harness A (Right branch) ('09-11 model with navigation system)
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Auxiliary jack assembly | 6 | 5 | Under right side of dash | Except SC model | |
| Front accessory power socket | 7 | 2 | Under right side of dash | ||
| Imoes unit | 5 | 5 | Under middle of dash | ||
| Navigation unit connector A | 23 | 24 | Behind navigation unit | ||
| Navigation unit connector B | 24 | 24 | Behind navigation unit | ||
| Navigation unit connector C | 3 | 8 | Behind navigation unit | ||
| Navigation unit connector D | 22 | 14 | Behind navigation unit | ||
| Navigation unit connector F | 2 | 12 | Behind navigation unit | ||
| Navigation unit connector G | 1 | 7 | Behind navigation unit | ||
| Passenger's airbag cutoff indicator | 4 | 4 | Under middle of dash | ||
| Stereo amplifier connector A | 12 | 14 | Under right side of dash | ||
| Stereo amplifier connector B | 11 | 16 | Under right side dash | ||
| C551 | 17 | 4 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C552 | 19 | 4 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C561 | 18 | 23 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C562 | 20 | 12 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C651 | 13 | 12 | Under right side of dash | Roof wire harness (see ROOF WIRE HARNESS ('09 MODEL) ) | |
| C652 | 8 | 4 | Under right side of dash | Roof wire harness (see ROOF WIRE HARNESS ('09 MODEL) ) | |
| C653 | 9 | 4 | Under right side of dash | Roof wire harness (see ROOF WIRE HARNESS ('09 MODEL) ) | |
| C781 | 14 | 14 | Under right side of dash | Front passenger's door wire harness (see FRONT PASSENGER'S DOOR WIRE HARNESS ) | |
| C851 | 16 | 21 | Behind glove box | A/C wire harness (see A/C WIRE HARNESS ) | |
| C852 | 15 | 1 | Behind glove box | A/C wire harness (see A/C WIRE HARNESS ) | |
| G502 | 10 | Under right side of dash | Body ground, via dashboard wire harness A | ||
| C503 | 21 | Under right side of dash | Body ground, via dashboard wire harness A |
'09 model with navigation system
