Roof Wire Harness ('07-08 models)

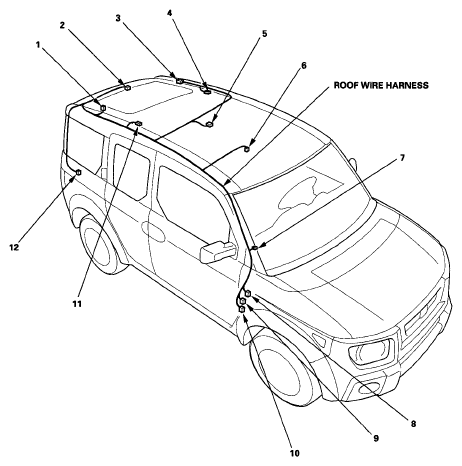

CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front ceiling light | 5 | 3 | Middle of roof | ||
| Left side curtain airbag | 4 | 2 | Middle of roof | ||
| Rear ceiling light | 2 | 3 | Rear of roof | ||
| Right side curtain airbag | 11 | 2 | Middle of roof | ||
| Right tweeter | 7 | 2 | Right A-pillar | EX and SC models | |
| AM/FM antenna | 1 | 1 | Rear of roof | Without XM radio | |
| Spotlight | 6 | 2 | Middle of roof | EX and SC models | |
| C603 | 3 | 4 | Rear of roof | Hatch wire harness (see HATCH WIRE HARNESS ('07-08 MODELS) ) | |
| C604 | 12 | 4 | Right quarter panel | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C651 | 8 | 6 | Under right side of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('07-08 MODELS) ) | |
| C652 | 9 | 4 | Under right side of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('07-08 MODELS) ) | |
| C653 | 10 | 4 | Under right side of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ('07-08 MODELS) ) |
