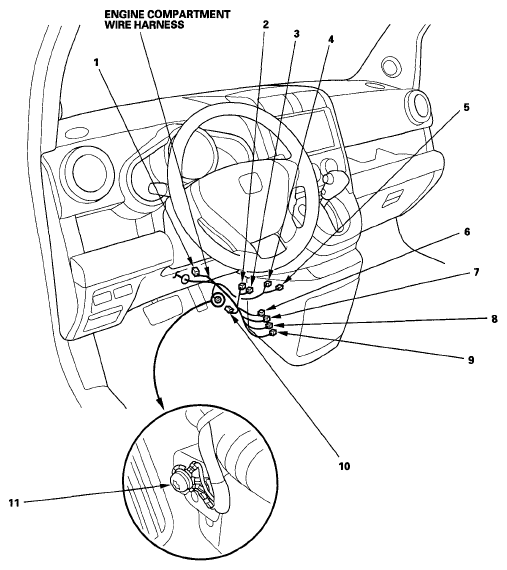

Engine Compartment Wire Harness (Dashboard)
CONNECTOR TERMINAL REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Optional connector (for fog light) | 10 | 3 | Under left side of dash | ||
| C401 | 8 | 20 | Under middle of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ('07-08 MODELS) ) | '07-08 models |
| C401 | 8 | 20 | Under middle of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ('09 MODEL) ) | '09 model |
| C402 | 9 | 16 | Under middle of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ('07-08 MODELS) ) | '07-08 models |
| C402 | 9 | 16 | Under middle of dash | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ('09 MODEL) ) | '09 model |
| C405 (Junction connector) | 1 | 20 | Under middle of dash | ||
| C451 | 6 | 20 | Under middle of dash | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) | |
| C452 | 7 | 20 | Under middle of dash | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) | |
| C501 | 3 | 14 | Under middle of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ('07-08 MODELS) ) | '07-08 models |
| C501 | 3 | 14 | Under middle of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ('09 MODEL) ) | '09 model |
| C502 | 2 | 13 | Under middle of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ('07-08 MODELS) ) | '07-08 models |
| C502 | 2 | 13 | Under middle of dash | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ('09 MODEL) ) | '09 model |
| C553 | 4 | 14 | Under middle of dash | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | |
| C853 | 5 | 1 | Under middle of dash | A/C wire harness (see A/C WIRE HARNESS ) | |
| G402 | 11 | Under middle of dash | Body ground, via engine compartment wire harness |
