Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) Cooling System Draining and Filling (Static Fill) .
  2. Remove the charge air cooler outlet air hose from the throttle body. Refer to Charge Air Cooler Outlet Air Hose Replacement (Manual Transmission) and Charge Air Cooler Outlet Air Hose Replacement (Automatic Transmission) .
  3. Remove the engine coolant air bleed hose from the water outlet. Refer to Engine Coolant Air Bleed Hose Replacement (1.8L LUW and LWE) , Engine Coolant Air Bleed Hose Replacement (2.0L Diesel LUZ)  and Engine Coolant Air Bleed Hose Replacement (1.4L LUV) .
  4. Remove the heater inlet hose from the water outlet. Refer to Heater Inlet Hose Replacement (2.0L Diesel LUZ) , Heater Inlet Hose Replacement (1.4L LUV) and Heater Inlet Hose Replacement (1.8L LUW and LWE) .
  5. Remove the radiator inlet hose from the water outlet. Refer to Radiator Inlet Hose Replacement (1.8L LUW and LWE) , Radiator Inlet Hose Replacement (2.0L Diesel LUZ)  and Radiator Inlet Hose Replacement (1.4L LUV) .
  6. Remove the engine oil cooler inlet hose from the water outlet. Refer to Engine Oil Cooler Inlet Hose Replacement (1.4L LUV, 1.8L LUW and LWE)  and Engine Oil Cooler Inlet Hose Replacement (2.0L Diesel LUZ) .
  7. Disconnect the engine coolant temperature sensor (water outlet) wiring harness connector.
  8. Remove the 3 water outlet bolts (3).

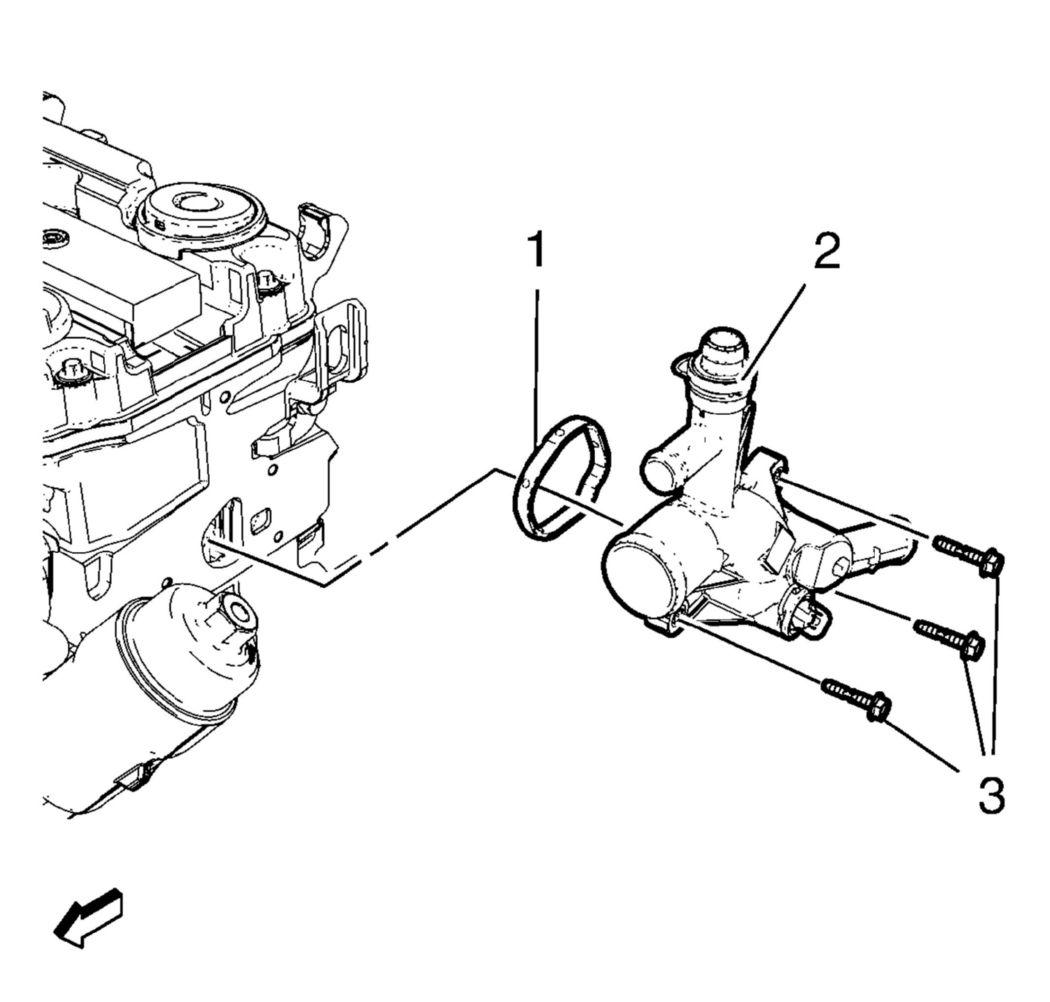

    Fig 1: Water Outlet
    GM2192300Courtesy of GENERAL MOTORS COMPANY
  9. Remove the water outlet (2) and the water outlet seal ring (1).
