Radiator Inlet Hose Replacement (1.4L LUV)

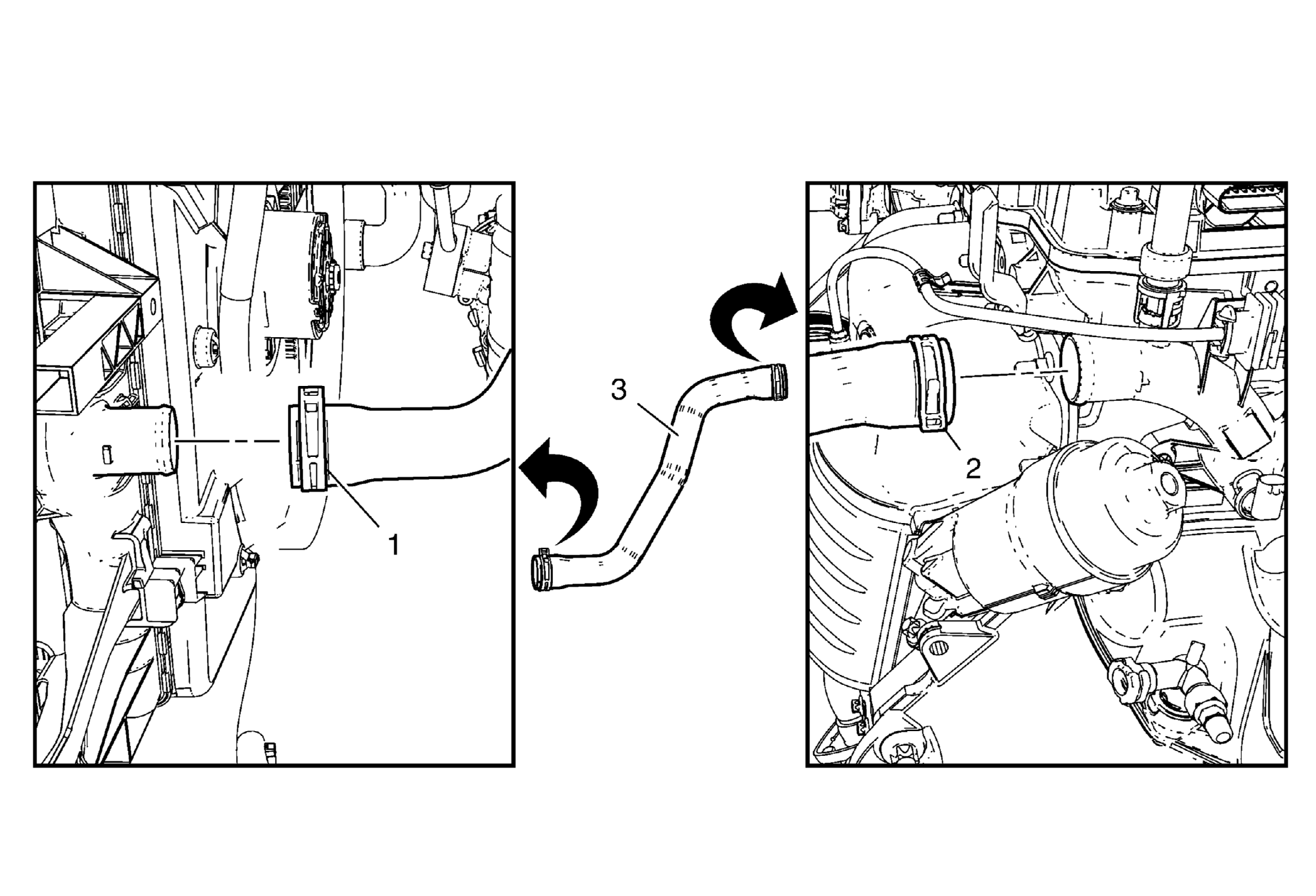

Fig 1: Radiator Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
1	Radiator Inlet Hose Clamp Procedure  Place a drain pan below the vehicle.
2	Radiator Inlet Hose Clamp
3	Radiator Inlet Hose
