Engine Coolant Air Bleed Hose Replacement (1.4L LUV)

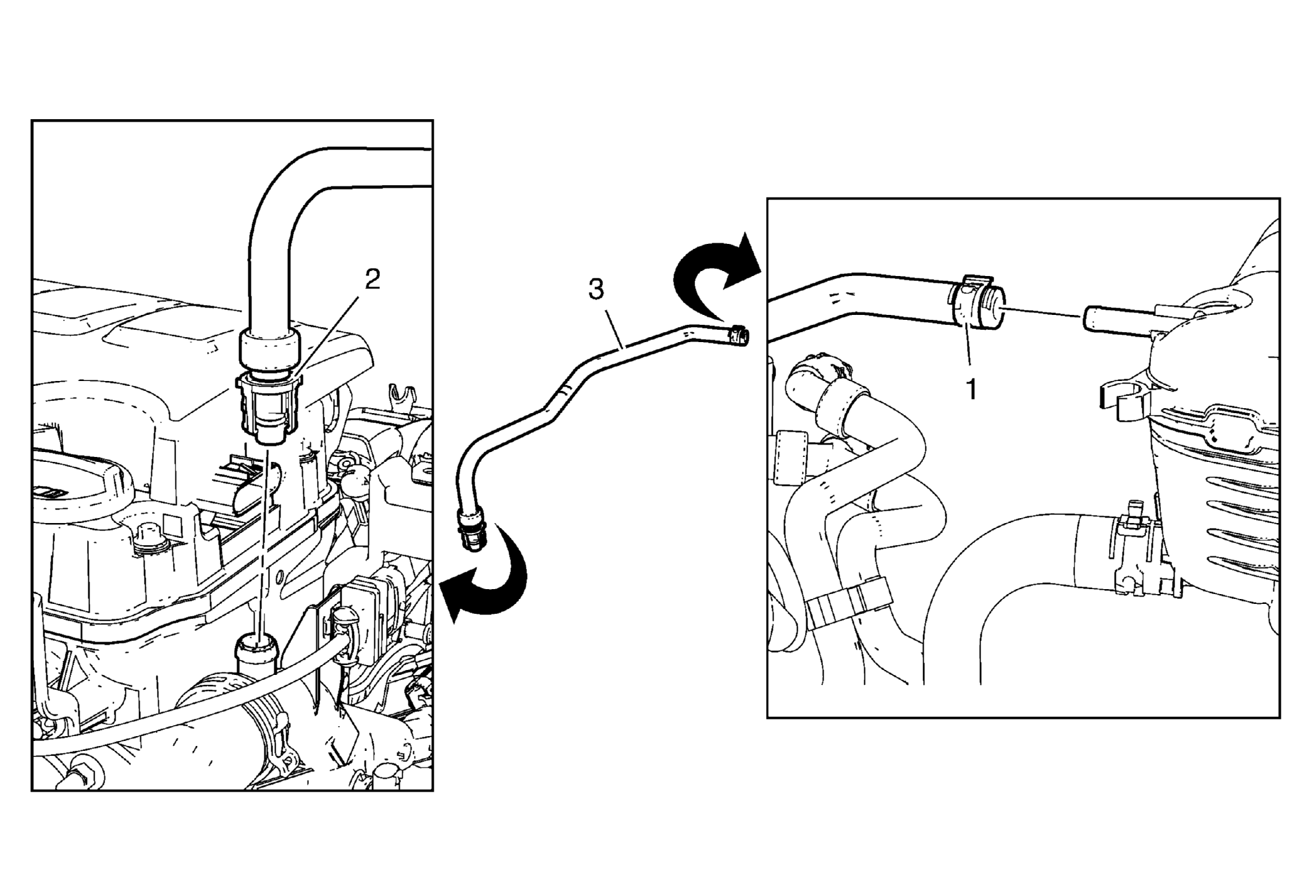

Fig 1: Identifying Engine Coolant Air Bleed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Engine Coolant Air Bleed Hose Clamp Procedure Place a drain pan below the vehicle. Remove/install engine coolant air bleed hose clamp.
2	Engine Coolant Air Bleed Hose Connector Procedure Unlock/lock engine coolant air bleed hose connector.
3	Engine Coolant Air Bleed Hose

Callout

Component Name

Engine Coolant Air Bleed Hose Clamp

Procedure

Engine Coolant Air Bleed Hose Connector
Procedure
Unlock/lock engine coolant air bleed hose connector.

Engine Coolant Air Bleed Hose
