Radiator Inlet Hose Replacement (2.0L Diesel LUZ)

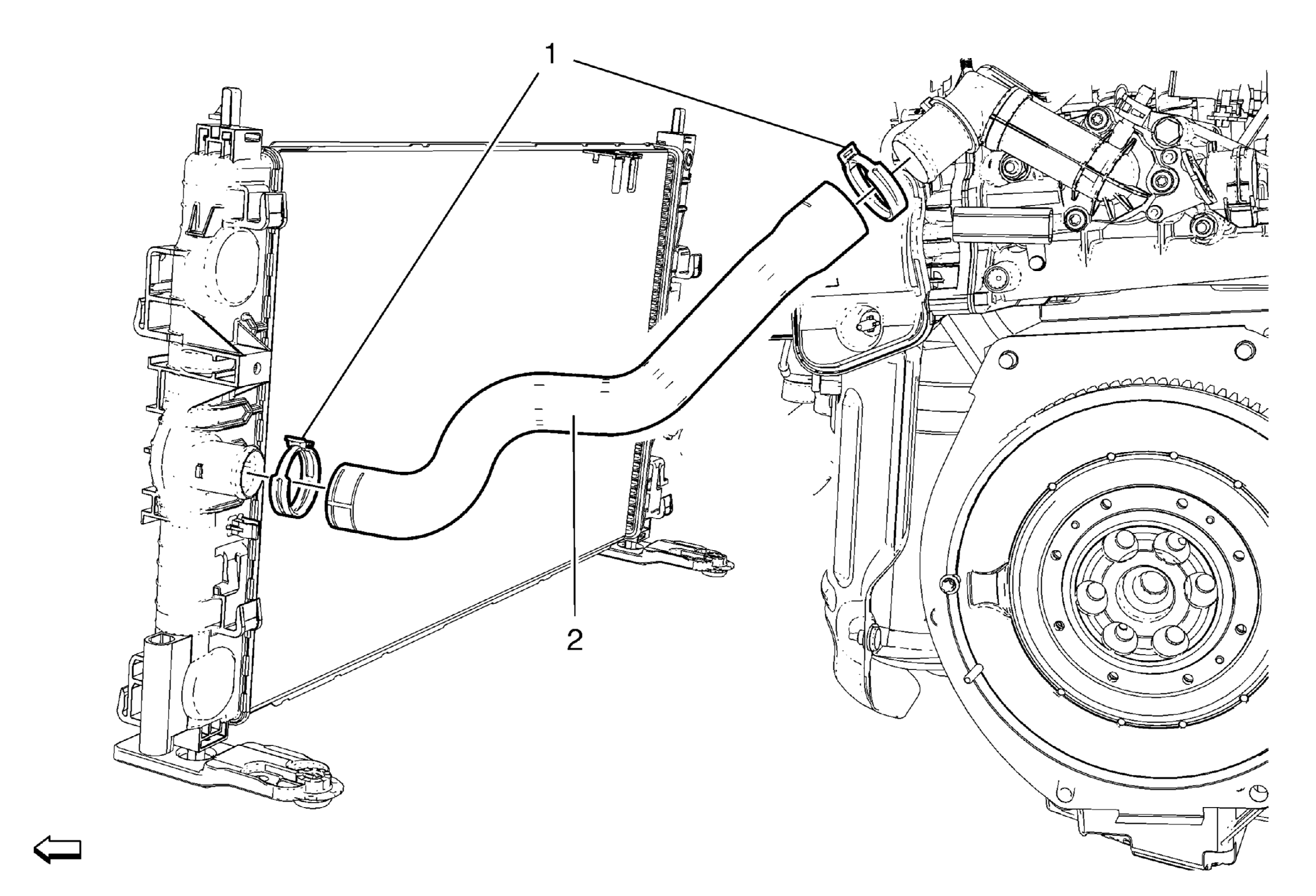

Fig 1: Radiator Inlet Hose (2.0L Diesel LUZ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) . Special Tools GE-47622 Hose Clamp Pliers.For equivalent regional tools, refer to Special Tools .
1	Radiator Inlet Hose Clamp (Qty: 2) Procedure Reposition the 2 radiator inlet hose clamps.
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Special Tools GE-47622 Hose Clamp Pliers.For equivalent regional tools, refer to Special Tools .

Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Reposition the 2 radiator inlet hose clamps.

Radiator Inlet Hose
