Heater Inlet Hose Replacement (2.0L Diesel LUZ)

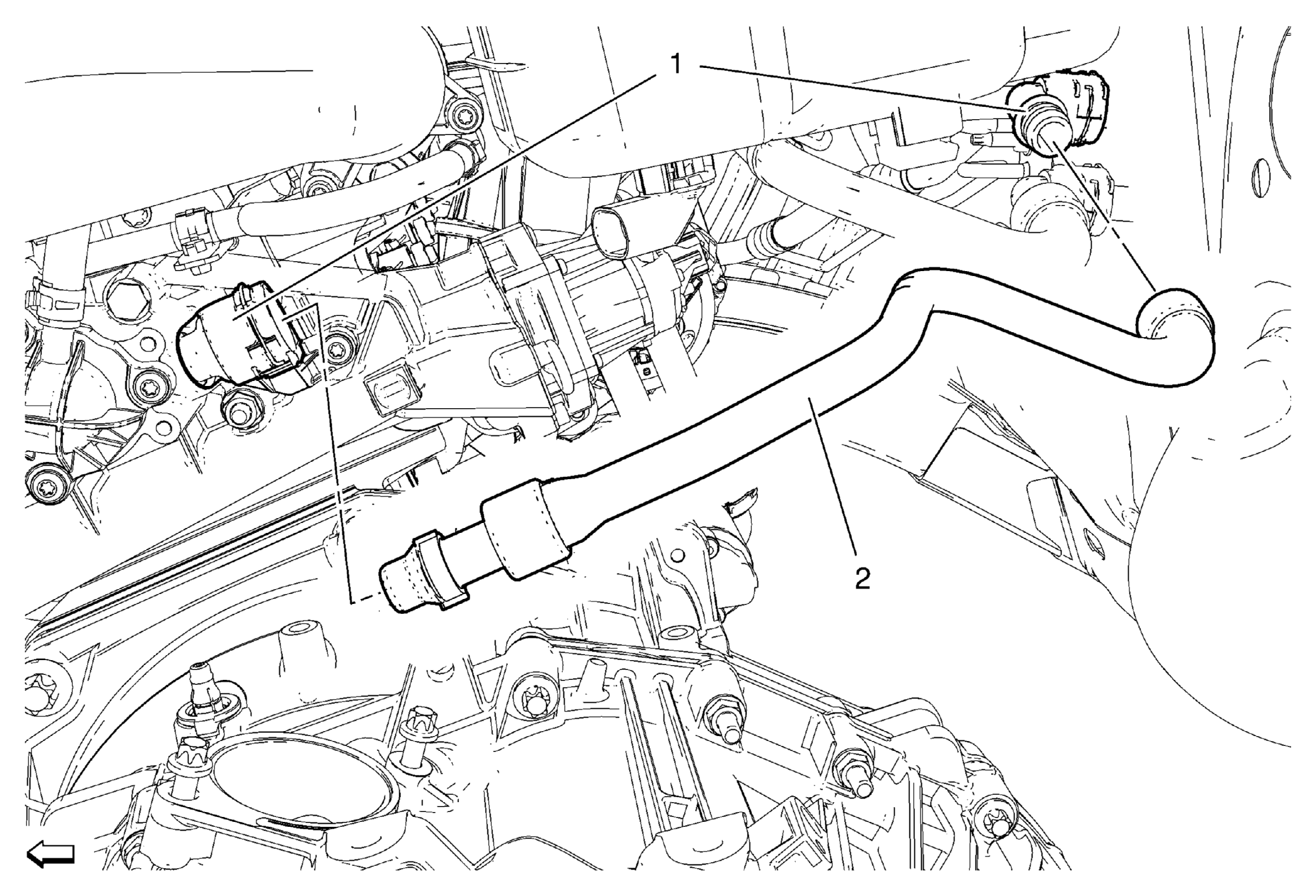

Fig 1: Heater Inlet Hose (2.0L Diesel LUZ)
GM2189484Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
  3. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
  4. Remove the engine control module. Refer to Engine Control Module Replacement .
1 Heater Inlet Hose Quick Connector (Qty: 2)
2 Heater Inlet Hose
