Heater Inlet Hose Replacement (1.4L LUV)

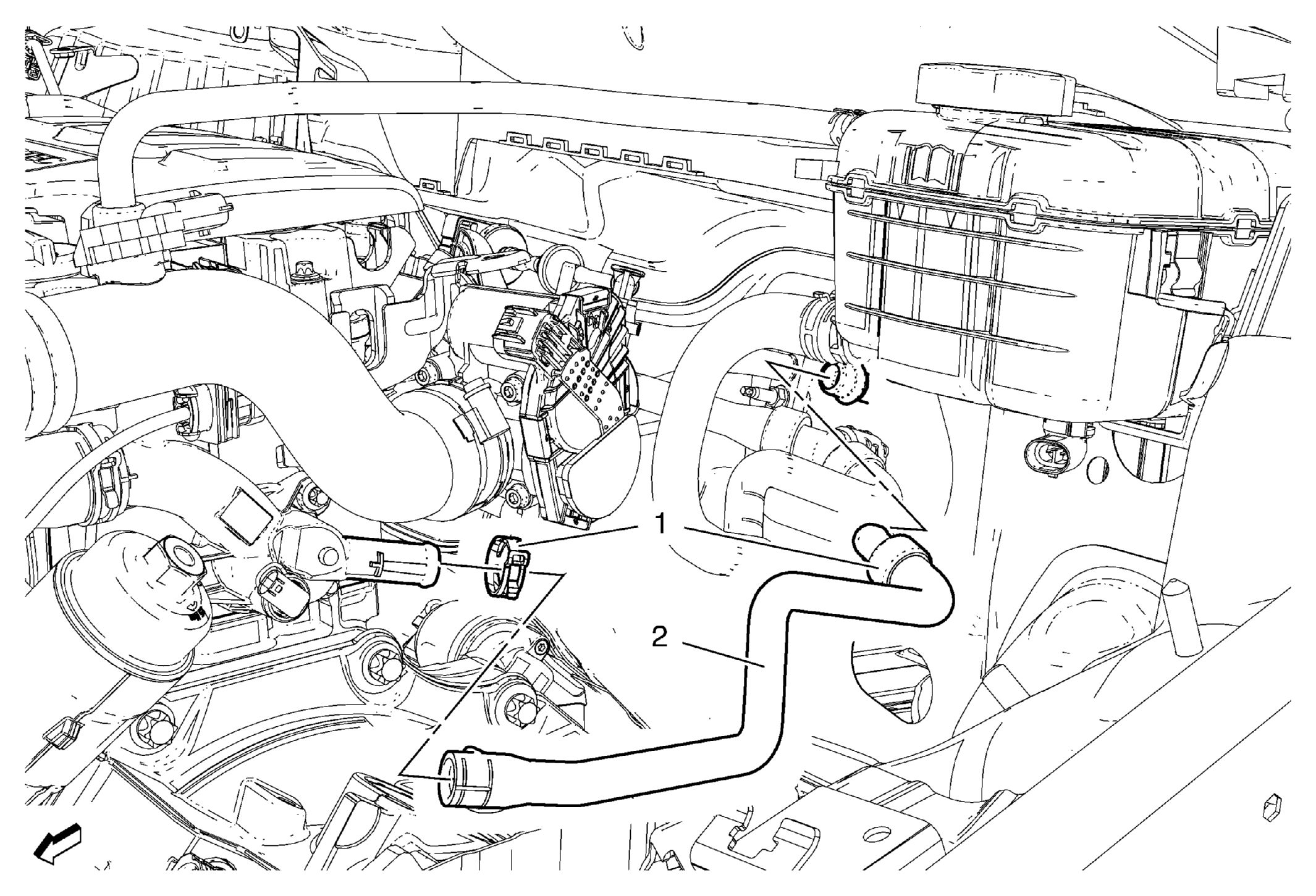

Fig 1: Heater Inlet Hose - (1.4L LUJ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
1	Heater Inlet Hose Clamp (Qty: 2)
2	Heater Inlet Hose
