Engine Oil Cooler Inlet Hose Replacement (2.0L Diesel LUZ)

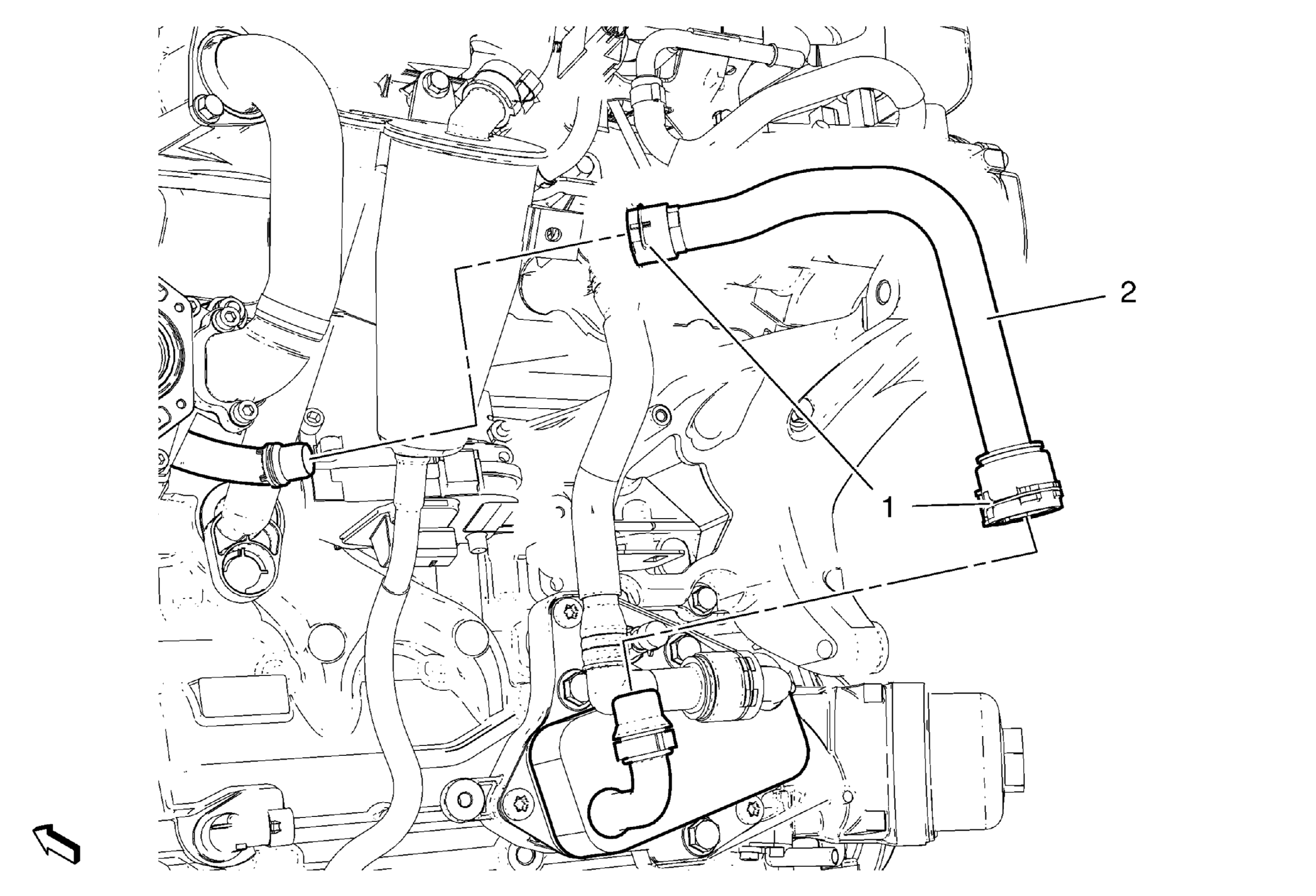

Fig 1: Engine Oil Cooler Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) .
1	Engine Oil Cooler Coolant Inlet Hose Clamp (Qty: 2) Procedure Put a collecting basin underneath and loosen the oil cooler coolant inlet hose clamps.
2	Engine Oil Cooler Coolant Inlet Hose

Callout

Component Name

Preliminary Procedure

Engine Oil Cooler Coolant Inlet Hose Clamp (Qty: 2)
Procedure
Put a collecting basin underneath and loosen the oil cooler coolant inlet hose clamps.

Engine Oil Cooler Coolant Inlet Hose
