Seat Adjuster Replacement - Rear (Captain)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

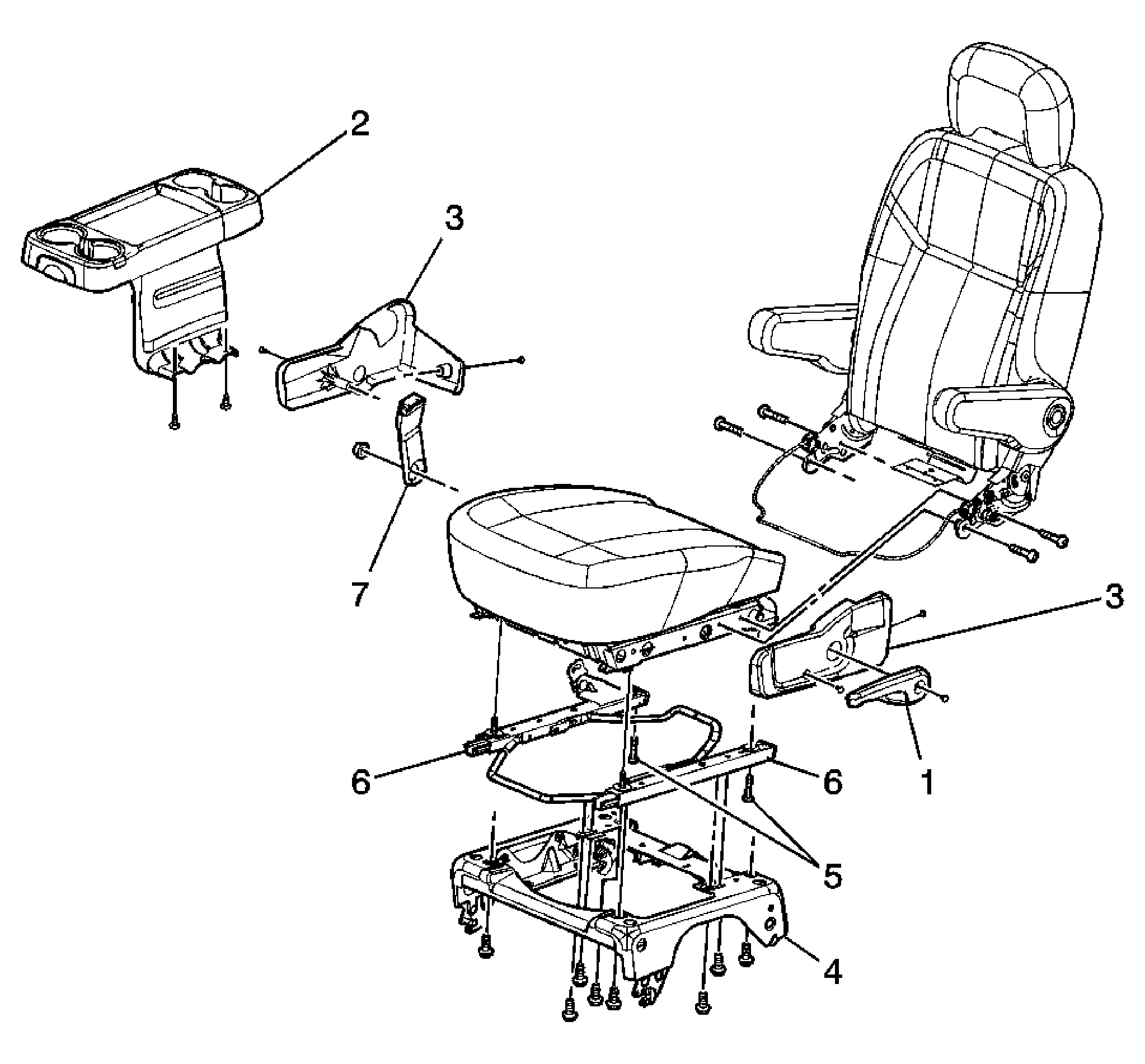

Fig 1: View Of Seat Adjuster - Rear (Captain)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Handle, Rear Seat Recliner Refer to Seat Back Recliner Handle Replacement - Rear (Captain) or Seat Back Recliner Handle Replacement - Rear (Bucket) .
2	Tray, Rear Seat Console Refer to Storage Tray Replacement - Rear (Captain Seat) .
3	Cover, Rear Seat Recliner Lower Refer to Seat Back Recliner Cover Replacement - Rear (Captain) or Seat Back Recliner Cover Replacement - Rear (Bucket) .
4	Riser, Rear Seat Refer to Seat Riser Replacement - Rear (Captain) or Seat Riser Replacement - Rear (Bucket) .
5	Bolt, Rear Seat Adjuster (Qty: 6) Tighten: 32 N.m (24 lb ft)
6	Adjuster Assembly, Rear Seat
7	Buckle Assembly, Rear Seat Refer to Seat Belt Buckle Replacement - Rear (Bucket Seat) or Seat Belt Buckle Replacement - Rear (Captain Seat) .
