Seat Belt Buckle Replacement - Rear (Bucket Seat)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

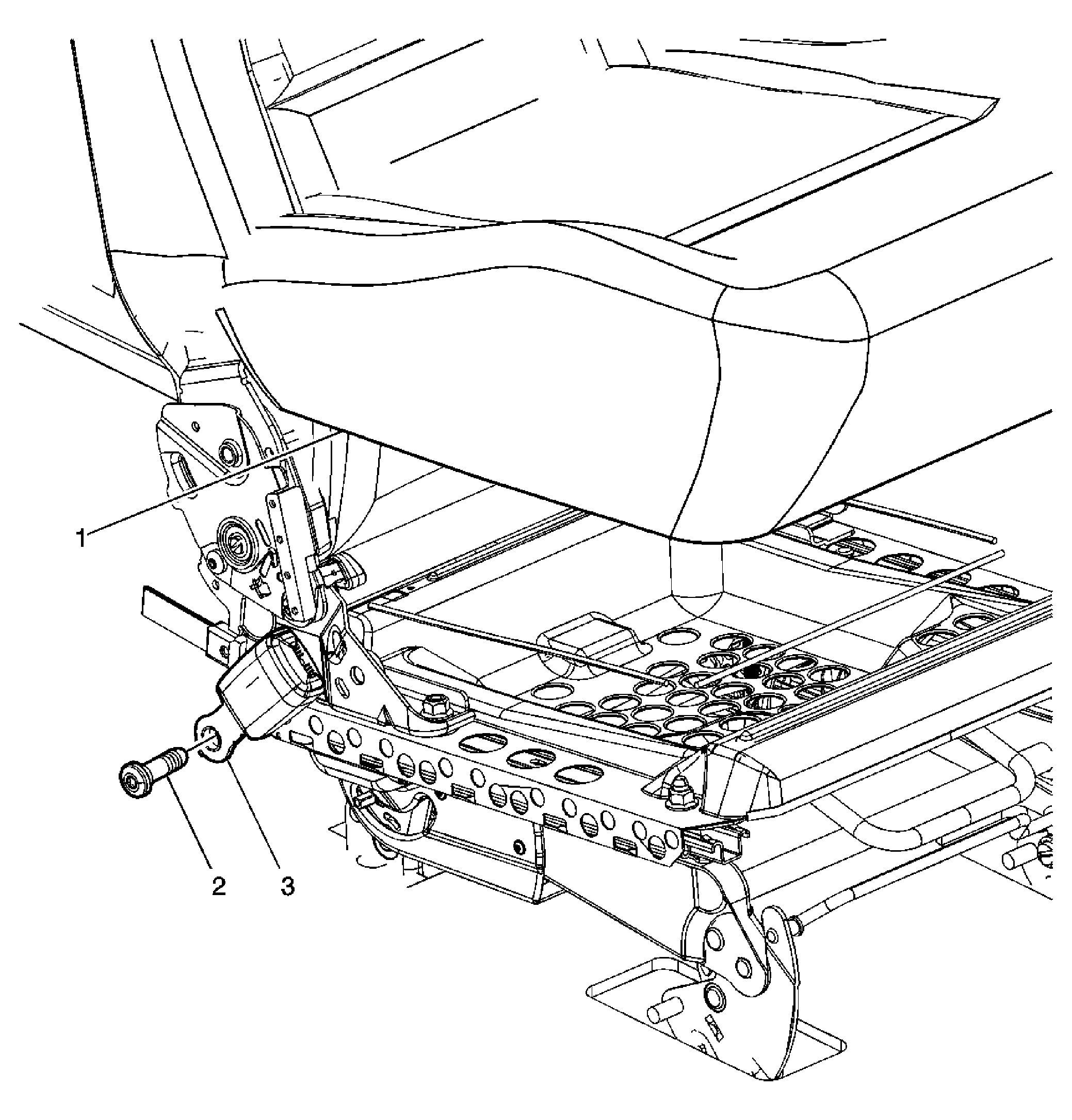

Fig 1: Identifying Rear Bucket Seat Belt Buckle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cover, Rear Seat Cushion Tip: Reposition seat cover enough to gain access to the seat belt buckle bolt.
2	Bolt, Passenger Seat Belt Buckle Tighten: 53 N.m (39 lb ft)
3	Buckle, Passenger Seat Belt
