Seat Belt Buckle Replacement - Rear (Captain Seat)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

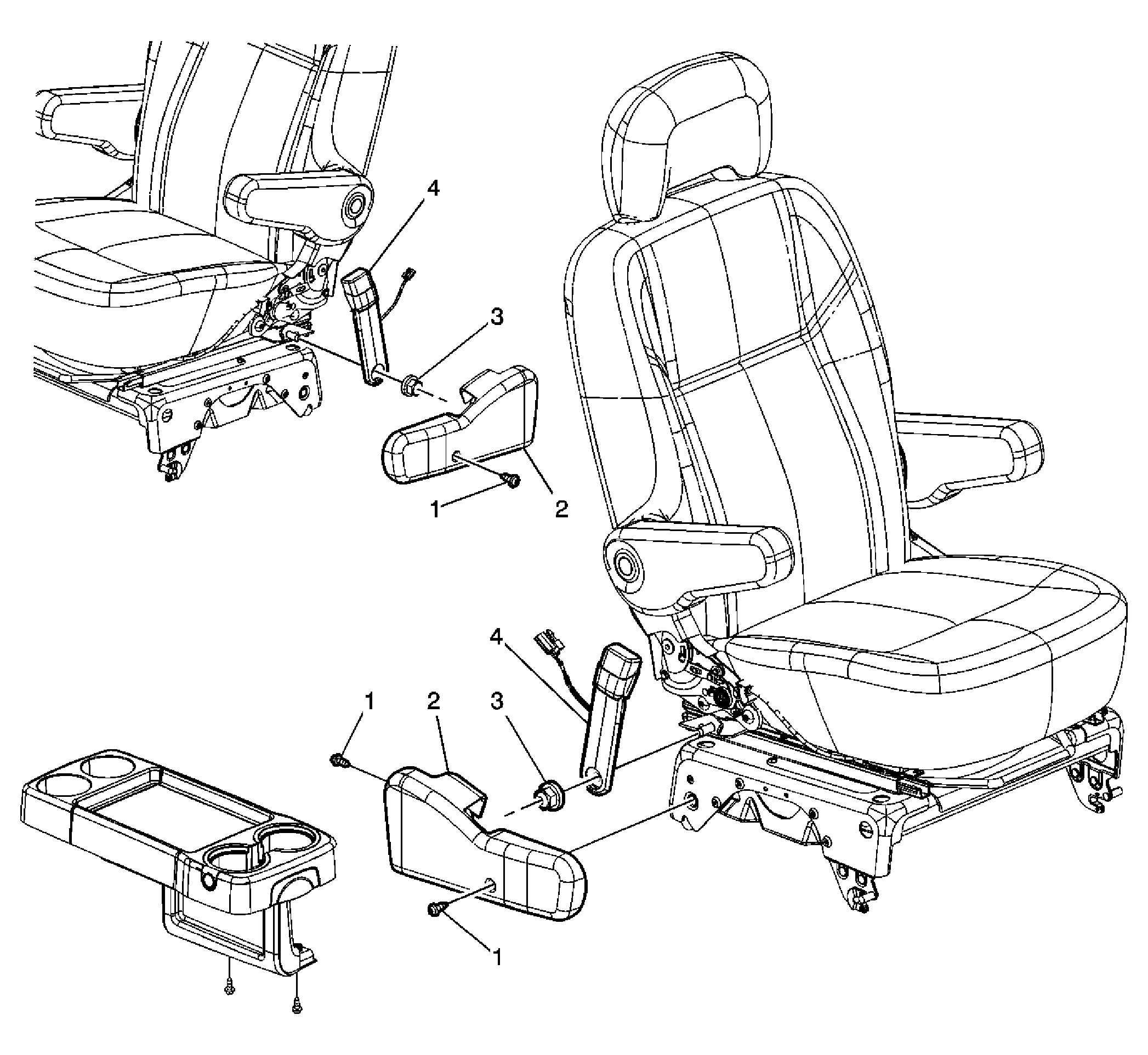

Fig 1: Identifying Rear Captain Seat Belt Buckle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the passenger seat, if necessary. Refer to Seat Replacement - Rear . Remove the storage tray, if necessary. Refer to Storage Tray Replacement - Rear (Captain Seat) .
1	Screws, Passenger Seat Cushion Inner Finish Panel Tighten: 2 N.m (18 lb in)
2	Panel, Passenger Seat Cushion Inner Finish
3	Nuts, Passenger Seat Belt Buckle Tighten: 53 N.m (39 lb ft)
4	Buckle, Passenger Seat Belt Tip: Disconnect the electrical connector.
