Preparing the special tool

WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

NOTE: RISK OF DAMAGE
Damage to steering column switch cluster (SZL).
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column.

After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DEACTIVATING ELECTRICAL SYSTEM .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE LATERAL HOOD SEALS .
Refer to REMOVING THE SIDE PANEL SEAL .
Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to IF INSTALLED: REMOVING THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to REMOVING THE BOTTOM WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
Refer to RELEASING THE LINE CONNECTION TO THE RIDE HEIGHT SENSOR .
Refer to DISCONNECTING THE LEFT AND RIGHT ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR .
Refer to LOOSENING THE TIE ROD ON THE LEFT AND RIGHT FROM THE SWIVEL BEARING .
Refer to RELEASING THE WISHBONE ON THE LEFT AND RIGHT FROM THE SWIVEL BEARING .
Refer to RELEASING THE TENSION STRUTS FROM THE SWIVEL BEARING ON THE LEFT AND RIGHT .
Refer to IF INSTALLED: REMOVING THE SILENCER OF THE STATIONARY HEATING .
Refer to PARTIALLY REMOVING THE LEFT AND RIGHT BRAKE VENTILATION DUCT .

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

NOTE: TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.

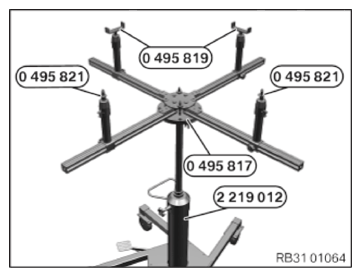

Attach the special tool 0 495 817 (31 5 251) on the special tool 2 219 012 .
Insert special tools 0 495 821 (31 5 255) in the telescopic supports of a profile rail pair.
Insert special tools 0 495 819 (31 5 253) in telescopic supports of the other profile rail pair.
