Removing the front section of the front wheel arch cover on the left and right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Remove the front section of the front wheel arch cover

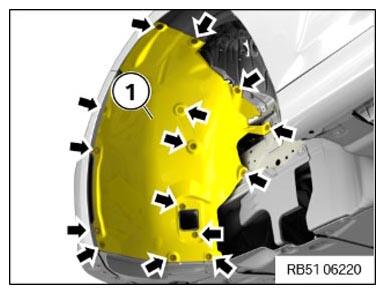

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Remove screws (arrows).
Remove the
front section of the front wheel arch cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
