Releasing the wishbone on the left and right from the swivel bearing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Releasing the wishbone from the swivel bearing

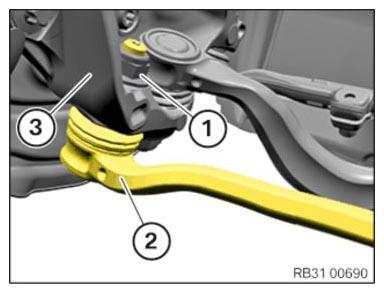

Release nut (1). If necessary, counter support at the Torx socket.
Release wishbone (2) from swivel bearing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Otherwise, the rubber grommet can be damaged. The components must not be in contact.

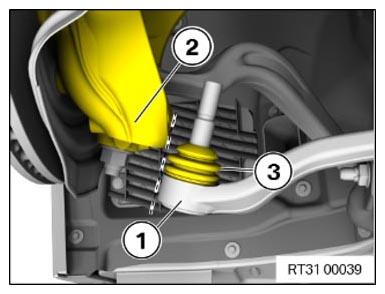

Make sure the rubber grommet (3) on the bottom wishbone (1) does not get damaged by the swivel bearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.
