Moving the hood to the service position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
Engine compartment lid is open.
CAUTION:
Shutting hood or trunk lid.
Injury hazard!
Injury hazard!
- Support the hood/tailgate in the fully open position using a suitable device.

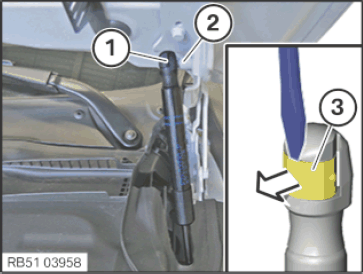

- Lift the clamp (3) slightly in arrow direction with a screwdriver.
- Lift off ball socket (1) from ball hub (2).
- Repeat the operation on the other side of vehicle.NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person. - Remove the support of the hood and open the hood further.

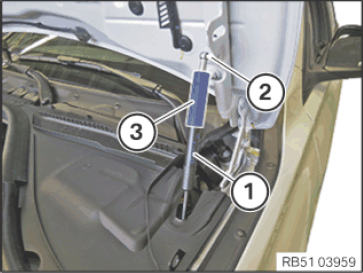

- Place special tool 0 493 200 (51 2 160) or 0 493 647 (51 2 170) or 0 494 787 (51 0 040) (3) over the gas pressure spring (1).
- Place special tool on the ball hub (2) and engage using force.
- Repeat the operation on the other side of vehicle.
Precondition
Engine compartment lid is open.
CAUTION:
Shutting hood or trunk lid.
Injury hazard!
Injury hazard!
- Support the hood/tailgate in the fully open position using a suitable device.

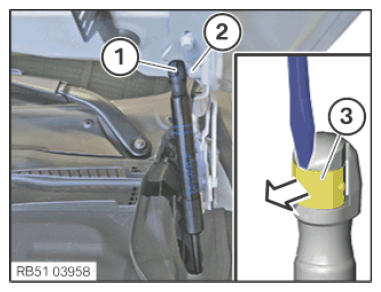

- Lift the clamp (3) slightly in arrow direction with a screwdriver.
- Lift off ball socket (1) from ball hub (2).
- Repeat the operation on the other side of vehicle.NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person. - Remove the support of the hood and open the hood further.

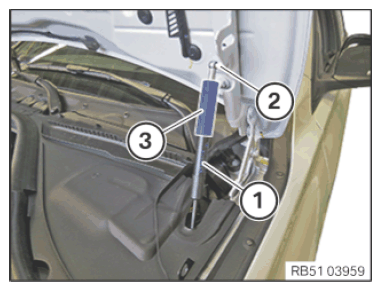

- Place special tool 0 493 200 (51 2 160) or 0 493 647 (51 2 170) or 0 494 787 (51 0 040) (3) over the gas pressure spring (1).
- Place special tool on the ball hub (2) and engage using force.
- Repeat the operation on the other side of vehicle.
