Installing the bottom automatic air flap control

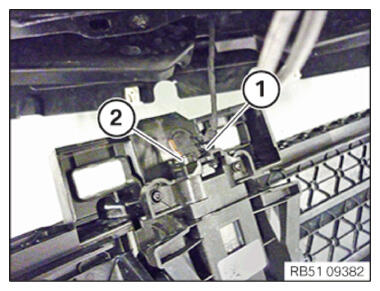

- Attach the air flap control.
- Connect connectors (2) and lock.
- Secure the wiring harness (1)
to the air flap control.

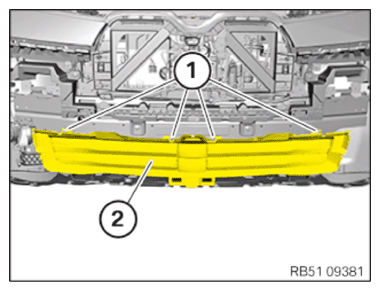

- Insert the air flap control (2) and position it correctly.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Lower air flap control on support | ||
|---|---|---|
| Oval-head screw Replace screws |
Tightening torque | 4 Nm |
Follow-up work
- Refer to INSTALLING THE FRONT BUMPER COVER .
- Refer to INSTALLING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
- Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
- Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
