Remove the rear carpet
Preliminary work
- Refer to REMOVING THE LEFT AND RIGHT FRONT SEAT .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
- Refer to REMOVING THE LOWER FRONT CENTER CONSOLE .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE SIDE COVER ON THE LEFT AND RIGHT DASHBOARD .
- Refer to REMOVING THE CENTER A-PILLAR TRIM PANEL AT LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR THE PEDAL MECHANISM .
- Refer to REMOVING FRONT ENTRANCE COVER STRIP .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING DOOR SILL COVER STRIP, FRONT RIGHT .
- Refer to REMOVING THE SPEAKER TRIM FROM THE LEFT AND RIGHT CENTRAL BASS .
- Refer to REMOVING THE REAR SEAT BENCH .
- Refer to REMOVING THE LEFT AND RIGHT BACKREST SIDE SECTIONS WITH THE AIRBAG .
- Refer to REMOVING THE SWITCH FOR THE FRONT REMOTE BACKREST UNLOCKING .
- Refer to REMOVING REAR DOOR SILL COVER STRIP ON LEFT AND RIGHT .
- Refer to PARTIALLY REMOVING THE B-PILLAR TRIM PANEL ON THE TOP LEFT AND RIGHT .
- Refer to REMOVING THE B-PILLAR TRIM PANEL AT THE BOTTOM LEFT AND RIGHT .

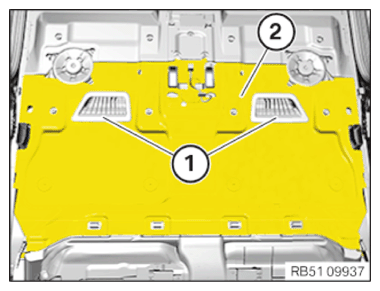

- Remove the ventilation grille (1) .
- Lift the carpet (2) and guide out the wiring harness.
- Remove the carpet (2) from the vehicle.
