Seats -- Repair (IX)
>>
52 26 Rear Seats
>>
52 26 005 Removing and installing/replacing rear seat
>>
Removing the rear seat bench
Removing the rear seat bench

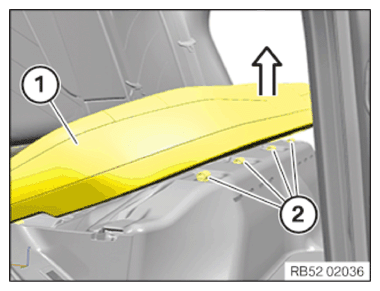

Unclip rear seat
(1)
carefully from detents
(2)
in the arrow direction.
Unlock and disconnect all existing plug connections.
Courtesy of BMW OF NORTH AMERICA, INC.

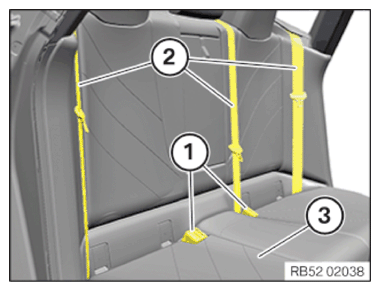

Guide out lower straps
(1)
from rear seat
(3)
.
Guide out upper seat belts
(2)
from rear seat
(3)
.
Remove rear seat
(3)
carefully from the vehicle.
Courtesy of BMW OF NORTH AMERICA, INC.
