Removing front entrance cover strip
NOTE:
RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part as soon as possible without using the tool.
Preliminary work
- Refer to REMOVING THE TRIM PANEL FOR THE PEDAL MECHANISM .
- Refer to REMOVING THE SIDE COVER ON THE DASHBOARD .
- Refer to REMOVING THE CENTER A-PILLAR TRIM PANEL .
NOTE:
RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part as soon as possible without using the tool.

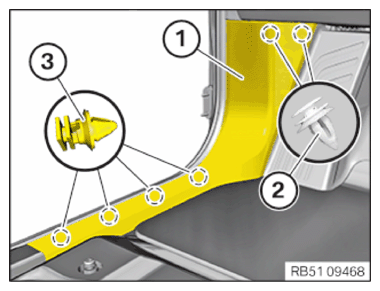

- Release the door sill cover strip (1) at the clips (2) .
- Release the door sill cover strip (1) with the special tool 0 496 569 (00 9 325) upward out of the clips (3) .
- Guide out the door sill cover strip (1) and remove it.
