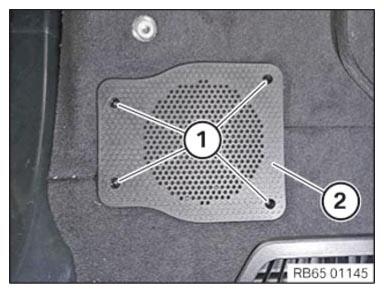

(Removing the speaker trim from the left and right central bass)

NOTE: Description is for left component only. Procedure on the right side is identical.

• Loosen screws (1).
• Remove the speaker trim (2) from the central bass.

Courtesy of BMW OF NORTH AMERICA, INC.
