Raise the front axle support and fasten it

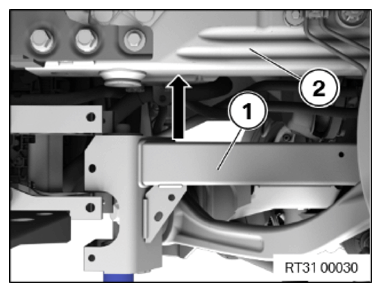

• Lift the front axle support (1)  and position it on the side member (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1)  to (4)  .

  Parts:  Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Front axle carrier to body, front
  M12x145 Replace screw.	Snug torque	100 Nm
  	Angle of rotation	90°

• Tighten down screws (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Front subframe to center of body
  M12x173 Replace screw.	Snug torque	100 Nm
  	Angle of rotation	90°

• Tighten down screws (3)  .
  TIGHTENING TORQUES SPECIFICATION



  Front axle carrier to body, rear
  M14 Replace screw.	Joining torque	108 Nm
  	Angle of rotation	45°

• Tighten down screws (4)  .

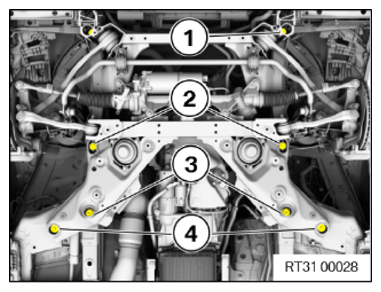

  Fig 1: Front Axle Carrier Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
  TIGHTENING TORQUES SPECIFICATION



  Front subframe on body, outside rear
  M12x50 Replace screw.	Joining torque	108 Nm
  	Angle of rotation	45°

  NOTE: Perform the steps on the right and left side.

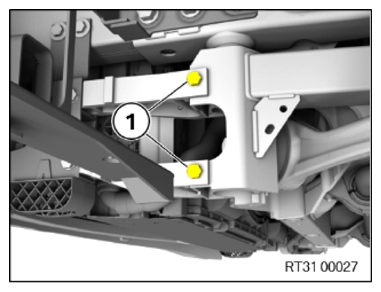

• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Front Subframe adapter to front subframe
  M8x85 Replace screws.	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

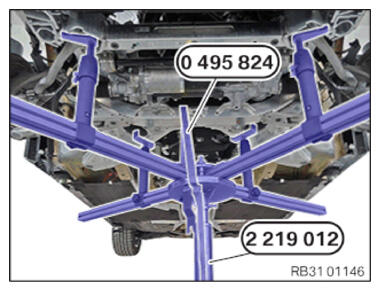

• Release and remove the special tool 0 495 824 (31 5 257)  .
• Lower special tool 2 219 012 and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT AND RIGHT CRASH LEVER .
• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
• Refer to CONNECTING THE CONNECTOR ON THE RIDE HEIGHT SENSOR AT THE FRONT .
• Refer to FASTENING WIRING HARNESS TO THE EPS .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to FASTENING THE COOLANT LINE .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
• Refer to TIGHTENING THE SCREW CONNECTION FOR THE TENSION STRUT ON THE FRONT SUBFRAME ON THE LEFT AND RIGHT .
• Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
