(Install the rear section of the front wheel arch cover on the left and right)
NOTE:
Perform the steps on the right and left side.
NOTE:

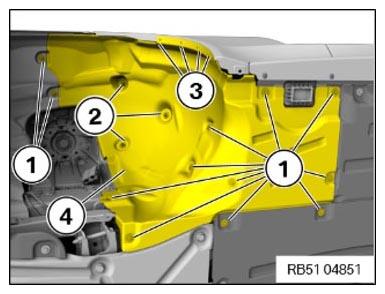

To provide a better overview: Schematic diagram with partially hidden components.
- Guide in rear section (4) of the front wheel arch cover.
- Tighten screws (1) and (3) and the nuts (2).
(TIGHTENING TORQUES SPECIFICATION)
| Wheel arch cover | ||
| Screw | Tightening torque | 2.6 Nm |
| Nut | Tightening torque | 2.6 Nm |
