(Measuring the ride height of the front axle and adjusting the normal position)

Set vehicle on its wheels (for example, workshop pit or vehicle lift for Kinematics Diagnosis System).

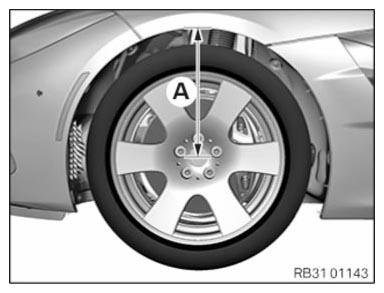

Measure the ride height (A).
Load or unload the vehicle until the ride height (A) is within the tolerance.

(TECHNICAL DATA SPECIFICATION)

G29, Standard suspension
Measured from center of wheel hub to lower edge of hood	Dimension A	373 ⁺¹⁰_{- 10} mm

Courtesy of BMW OF NORTH AMERICA, INC.

(TECHNICAL DATA SPECIFICATION)

G29Sports suspension settings, lowered
Measured from center of wheel hub to lower edge of hood	Dimension A	366 ⁺¹⁰_-10 mm
