(Installing the left and right crash lever)

NOTE: Perform the steps on the right and left side.

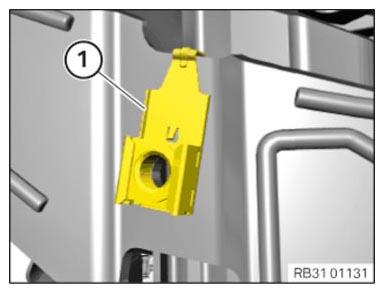

Replace lock nut (1).
Parts: Lock nut
Position the lock nut (1) on the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the threaded connection in the normal position.

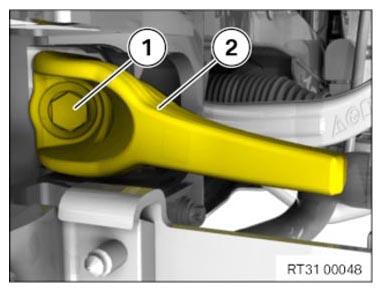

Position the tension strut and crash lever (2) on the front subframe.
Replace the screw (1).
Parts: Screw
Tighten screw (1) by hand.
The screw connection is tightened later in normal position.

Courtesy of BMW OF NORTH AMERICA, INC.
