(Securing the anti-roll bar link on the left and right to the anti-roll bar)

NOTE: Perform the steps on the right and left side.

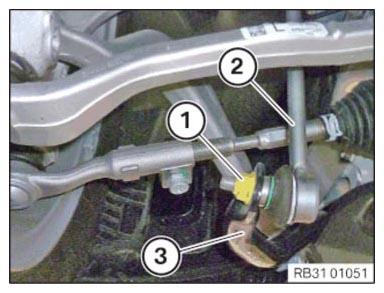

• Position the anti-roll bar link (2) on the anti-roll bar (3).
• Replace nut (1).

  Parts: Nut

• Tighten nut (1).

NOTE: Counter-hold at the Torx socket.

(TIGHTENING TORQUES SPECIFICATION)

Front anti-roll bar link to anti-roll bar/spring strut
M10 Replace nut.	tightening torque	56 Nm
