(Fastening the coolant line)
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

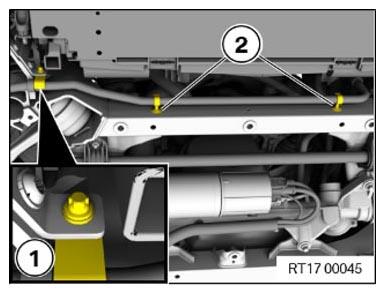

- Position the coolant line on both holders (2) and clip in.
- Tighten the screw (1) on the left and right.
(TIGHTENING TORQUES SPECIFICATION)
| Coolant line to front subframe |
| M6 |
tightening torque |
11.8 Nm |
