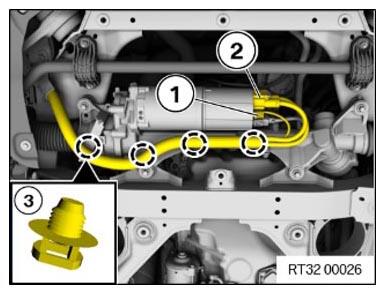

(Fasten wiring harness to the EPS)
- Connect connectors (1) and (2) and lock.
- Fasten wiring harness in the detents (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

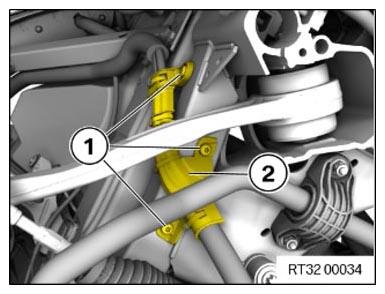

- Position the cable clip (2) with the wiring harness.
- Tighten down screws (1).
(TIGHTENING TORQUES SPECIFICATION)
| EPS cable bracket on body |
| M6 |
tightening torque |
8 Nm |
