Remove right cylinder head cover
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE LEFT AND RIGHT UNDERSHIELD (TANK COVER) .
- Refer to REMOVING THE REAR LEFT AND RIGHT TENSION STRUT .
- Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING LEFT OXYGEN CONTROL SENSOR .
- Refer to REMOVING RIGHT OXYGEN CONTROL SENSOR .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING RIGHT SUSPENSION STRUT BRACE .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE TOP LEFT COVER IN THE ENGINE COMPARTMENT , and REMOVING THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE TENSION STRUT AT THE SHOCK TOWER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE LEFT UNFILTERED-AIR DUCT .
- Refer to REMOVING FAN COWL .
- Refer to DRAINING THE COOLANT FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to RELEASING LEFT CHARGE AIR LINE PARTIALLY .
- Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
- Refer to REMOVING LEFT CLEAN AIR PIPE .
- Refer to REMOVING RIGHT CLEAN AIR PIPE .
- Refer to REMOVING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING DRIVE BELT .
- Refer to REMOVING LEFT CHARGE AIR COOLER .
- Refer to REMOVING RIGHT CHARGE AIR COOLER .
- Refer to REMOVING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to REMOVING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to REMOVING THE RIGHT OXYGEN SENSOR MONITOR .
- Refer to RELEASING THE HEAT PROTECTION WIRE RING OF THE LEFT OXYGEN SENSOR MONITOR .
- Refer to REMOVING THE RIGHT-HAND ENGINE VENTILATION LINE AND THE CRANKCASE VENTILATION INTAKE PIPE .
- Refer to REMOVING THE LEFT ENGINE VENTILATION LINE .
- Refer to REMOVING UPPER HEAT SHIELD .
- Refer to RELEASING SCREW BETWEEN THE LEFT AND RIGHT HEAT SHIELD .
- Refer to REMOVING THE LEFT HEAT SHIELD .
- Refer to REMOVING RIGHT HEAT SHIELD .
- Refer to REMOVING THE CATALYTIC CONVERTER FOR CYLINDERS 1 TO 4 .
- Refer to REMOVING THE IGNITION COILS OF CYLINDERS 1 THROUGH 4 .
- Refer to REMOVING THE IGNITION COIL FROM CYLINDER 5 .
- Refer to PARTIALLY UNDOING WIRING HARNESS FROM RIGHT CYLINDER HEAD COVER .
- Refer to REMOVING RIGHT RAIL .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING RIGHT HIGH-PRESSURE PUMP .
- Refer to REMOVING THE INJECTORS FOR CYLINDERS 1 TO 4 .
- Refer to REMOVING VANOS SOLENOID ACTUATOR, EXHAUST OF CYLINDER BANK 1 .
- Refer to REMOVING THE VANOS SOLENOID ACTUATOR INTAKE OF CYLINDER BANK 1 .
- Determine the screw type and select the appropriate socket wrench:
Screw type Appropriate socket wrench Hexagon screw (3) Standard socket wrench (1) Multi-tooth screw (4) Multi-tooth socket wrench (2) NOTE: TECHNICAL INFORMATION
The following steps must be carried out If the exhaust turbocharger is still installed in the vehicle .
In order to guarantee accessibility to the screws on the cylinder head cover, the oil feed line of the exhaust turbocharger on the right must be detached. - Loosen screw (1).
- Unscrew the banjo bolt (2).
- Catch and dispose of emerging motor oil.
- Set aside the oil feed line.

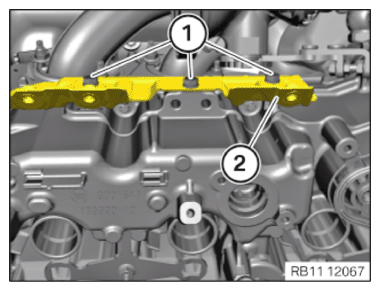

- Loosen screws (1).
- Feed out and remove the heat shield (2).
- Loosen screw (1).
- Remove the bracket for the left charge air cooler.

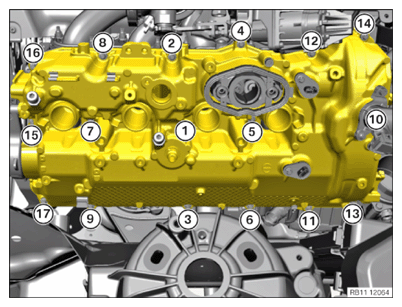

- Loosen screws (1) to (17).
- Feed out and remove the cylinder head cover In an upward direction.
