Partially undoing wiring harness from right cylinder head cover
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

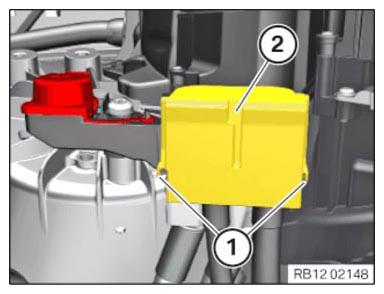

- Unlock the locks (1).
- Feed the cover panel (2) out to the top and remove.

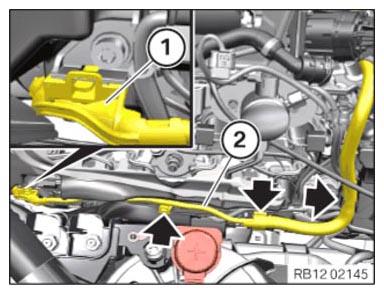

- Unlock lock (1) and disconnect.
- Release the wiring harness section (2) from the clamps (arrows) and place aside.

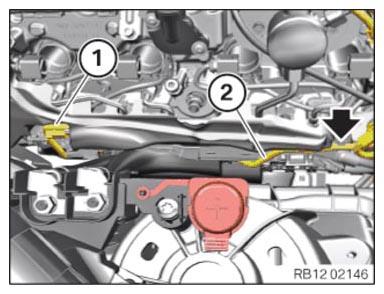

- Unlock plug connection (1) and disconnect.
- Release the cable (2) from the bracket (arrow) and put it aside.
- Unlock plug connection (3) and disconnect.

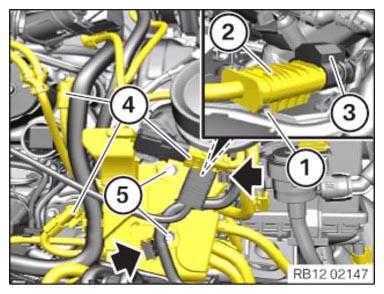

- Unlock the connector (2) and disconnect from the bracket (1).
- Unlock and disconnect plug connections (4).
- Release the clamps (arrows).
- Loosen screws (5).NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

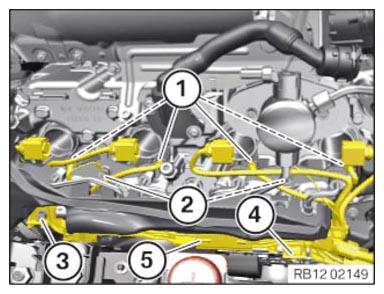

- Unlock and disconnect the connectors (2) from the injectors with a small slotted screwdriver (1).

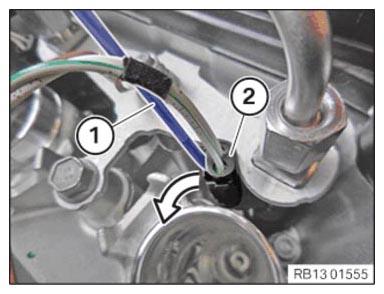

- Unlock the lock in the direction of the arrow with a small slotted screwdriver (1). Disconnect the connector (2) on the connector housing from the injector.
- Unlock the plug connections (1) and disconnect them from the injectors.
- Release nuts (2) and remove ground cable.
- Loosen screw (3).
- Unlock lock (4).
- Remove the wiring harness section (5) and put to one side.

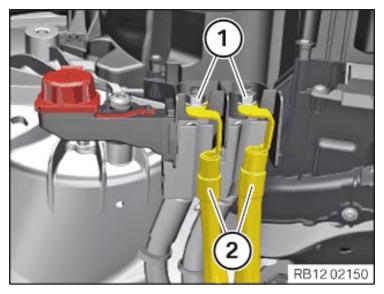

- Loosen nuts (1).
- Thread out the positive battery cables (2) and set aside.

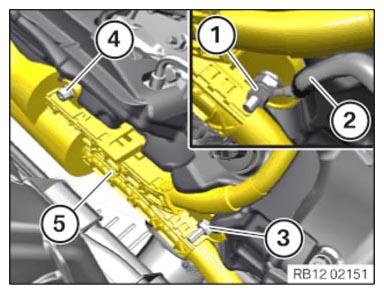

- Loosen nut (1).
- Feed out the ground cable (2) and set it aside.
- Loosen screw (3).
- Loosen screw (4).
- Remove the wiring harness section (5) and put to one side.

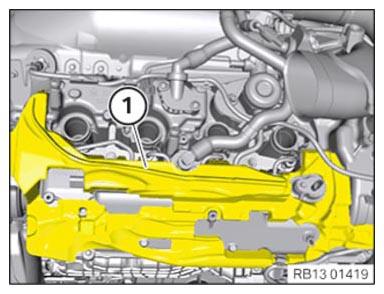

- Remove the sound insulation (1) on the right-hand cylinder head cover.
- Check sound insulation (1) for damage. Replace faulty or fuel-soaked sound insulation.
