Removing the stiffening plate
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.

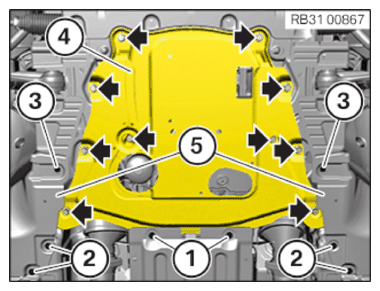

- Loosen screws (1) to (3).
- Remove screws (arrows).
- Feed out and remove the thrust field (4) in the area (5) of the wheel arch trim panel.
