Releasing left charge air line partially
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Check the plastic components of the locking mechanism or clamp for damage.
Replace the charge air ducts with damaged plastic components on the locking mechanism.

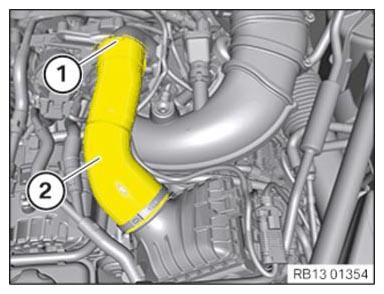

- Unlock the lock (1).
- Release left charge air line (2) from the exhaust turbocharger and set aside.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
