Removing the left heat shield
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

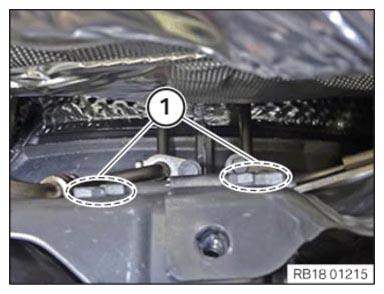

- Release the screws in areas (1).

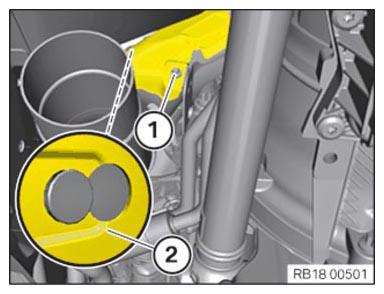

- Loosen screw (1).

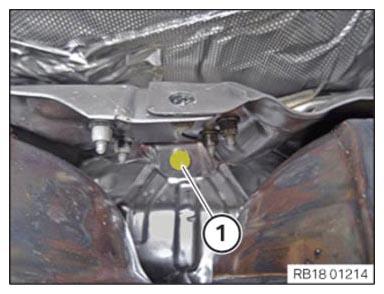

- Release the screw (1) at the bottom of the heat shield (2).
- Release the heat shield (2) from the lower heat shield.

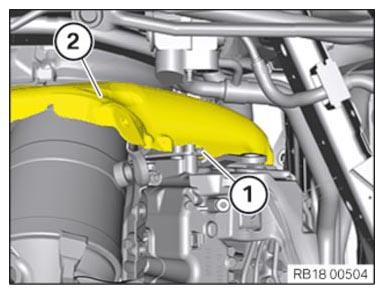

- Release the screw (1) at the top of the heat shield (2).
- Release left heat shield (2) from the other heat shields.
- Feed out left heat shield (2) to the top and remove.
- Loosen screw (1).
- Release the screw (1) at the bottom of the heat shield (2).
- Release the heat shield (2) from the lower heat shield.
- Release the screw (1) at the top of the heat shield (2).
- Release left heat shield (2) from the other heat shields.
- Feed out left heat shield (2) to the top and remove.
