Removing the left intake plenum

WARNING: Car may slip off the vehicle hoist where components are supported .
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly .
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .

NOTE: TECHNICAL INFORMATION
After a brake pad exchange and before pressing the brake pedal: It is imperative to apply the electromechanical parking brake.
If this is not observed, a CC message appears and the brake system switches to the emergency program. The brake booster is no longer active.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING REAR HOOD SEAL .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING THE COWL COVER .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
Refer to REMOVING SEAL FOR FRONT HOOD .
Refer to REMOVING THE STRUT BRACE AT THE LEFT AND RIGHT .
Refer to RELEASING THE RIGHT FRONT SPRING STRUT (AIR SUSPENSION) .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to PARTIALLY REMOVING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM (DOOR SILL) .
Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE STIFFENING PLATE .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
Refer to REMOVING TRAILING LINK AT SPRING BOLT .
Refer to REMOVING COVER FOR THE DME CONTROL UNIT ON LEFT .
Refer to REMOVING THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
Refer to REMOVING THE HOLDER FOR THE DME CONTROL UNIT ON THE LEFT .
Refer to REMOVING THE LEFT UNFILTERED-AIR DUCT .
Refer to REMOVING STIFFENING STRUT .
Refer to REMOVING FRONT WHEEL ARCH COVER AT THE BOTTOM LEFT AND RIGHT .
Refer to REMOVING CRASH LEVERS LEFT AND RIGHT .
Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to IF INSTALLED: REMOVING THE AUXILIARY HEATER .
Refer to REMOVING THE EPS WIRING HARNESS .
Refer to RELEASING THE WIRING HARNESS FROM THE ACTIVE STABILIZER .
Refer to RELEASING UNIVERSAL JOINT ON STEERING GEAR .
Refer to RELEASING THE LEFT AND RIGHT OUTPUT SHAFT FROM THE WHEEL BEARING .
Refer to DETACHING THE TOP LEFT AND RIGHT WISHBONE FROM THE SWIVEL BEARING .
Refer to FASTENING THE SWIVEL BEARING ON THE LEFT AND RIGHT .
Refer to DISCONNECTING THE CONNECTOR FROM VERTICAL ACCELERATION SENSOR ON THE LEFT AND RIGHT .
Refer to DISCONNECTING THE PLUG CONNECTIONS ON THE LEFT AND THE RIGHT .
Refer to LOOSENING AND TYING UP BRAKE CALIPER, LEFT AND RIGHT .
Refer to REMOVING THE SPRING STRUT HOLDER ON LEFT AND RIGHT .
Refer to REMOVING LEFT AND RIGHT OUTPUT SHAFT: .
Refer to RELEASING THE BRACKET OF THE TRANSMISSION OIL COOLING .
Refer to DISCONNECTING THE COOLANT HOSE FROM THE FRONT SUBFRAME .
Refer to PREPARING THE MOBILE TABLE LIFT .
Refer to POSITION THE MOBILE TABLE LIFT .
Refer to LOOSENING THE SWIVEL BEARING ON THE LEFT AND RIGHT .
Refer to UNSCREW THE BOLTS ON THE FRONT AXLE SUPPORT .
Refer to REMOVING FRONT AXLE .
Refer to REMOVING THE LEFT ENGINE SUPPORT BRACKET .

Screws of the left intake plenum

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids .
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Unlock the clamp (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the locks (1) in the direction of the arrow.
Disconnect the transmission oil lines (2) .
Catch and dispose of the leakage transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the belt tensioner (2) clockwise with a suitable socket wrench (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

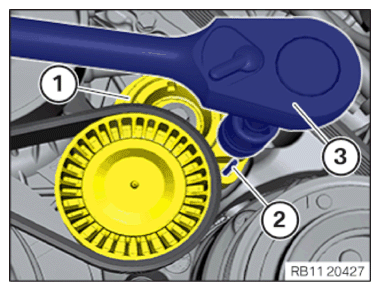

Maintain the preload of the belt tensioner (1) using a suitable socket wrench (3) .
Secure the belt tensioner (1) against rotation, using a special tool 0 496 268 (11 0 390) (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the drive belt (1) from the belt pulley (2) of the air conditioning compressor (5) and put it aside.
Unlock plug connection (3) and disconnect.
Loosen screws (4) .
Detach the air conditioning compressor (5) and protect it from falling.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the tank vent line (1) .
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness section (1) together with the clamps (arrowed) from the intake plenum (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove screws (arrows).
Guide out the intake plenum (1) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
