If installed: Remove the auxiliary heater (additional work AW no: 31 11 905)

Remove the front section of the front wheel arch cover

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Remove screws (arrows).
Feed out the front section of wheel arch cover (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

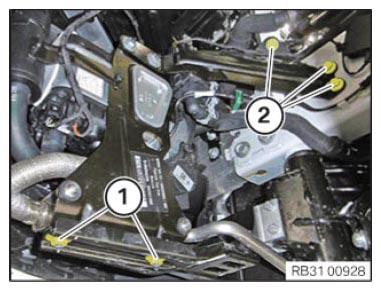

Loosen nuts (1) .
Loosen screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

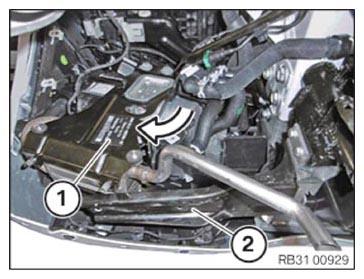

Release the stationary heating system (1) from the bracket (2) .
Set aside the stationary heating system (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
