Prepare the mobile table lift
Mobile table lift
- Stage the mobile table lift 2 184 136
.
- Place the mounting element from the set of special tools 2 305 379
ready.

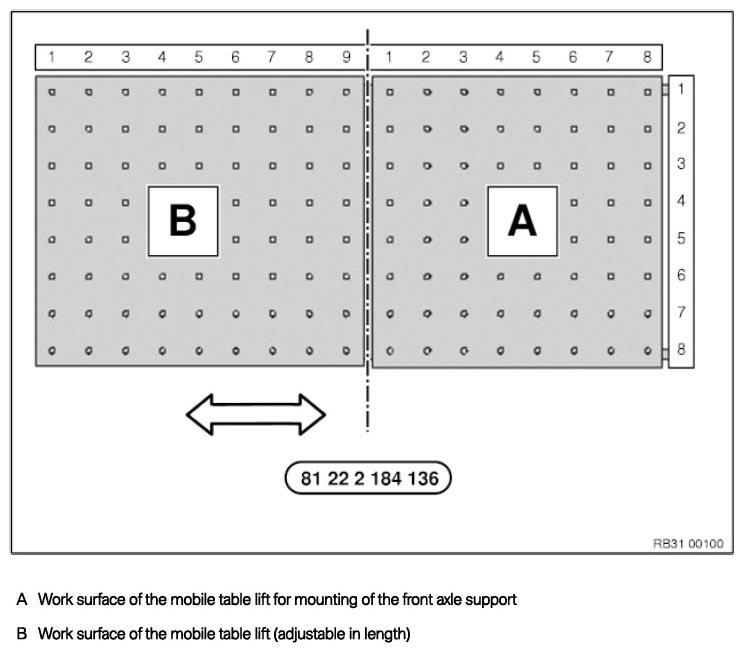

- Position mounting elements (20)
on the work surface of the mobile lifting table.
- Front subframe: 7/2 and 7/7
- Rear front subframe: 1/1 and 1/8
- Position the mount for the swivel bearings (10)
on the work surface of the mobile lifting table at the coordinates 4/1
and 5/8
.
- Adjust the inclination of the lifting table (1)
with the adjustment screw (2)
until the bubble level of the lifting table (1)
displays the correct position.
