Installing starter motor

• Before installation of the starter motor, check the starter motor pinion and starter motor ring gear for damage. If necessary, replace damaged components.

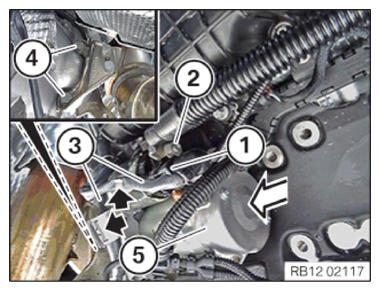

• Insert and install the starter (5)  in the direction of the arrow.
• Tighten down screws (4)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the cables (3)  to the clamps (arrows).
• Feed in and install positive battery cable.
• Tighten the nut (2)  .

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

Follow-up work

• Refer to INSTALLING THE RIGHT ENGINE MOUNT HOLDER .
• Refer to FOR REUSING: CHECKING THE GEARING OF THE OUTPUT SHAFT AND REPLACING THE CIRCLIP .
• Refer to REPLACING THE LEFT RADIAL SHAFT SEAL .
• Refer to INSTALLING LEFT OUTPUT SHAFT .
• Refer to CHECK/ADD FRONT AXLE TRANSMISSION OIL .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING SPRING SUSPENSION STRUT .
• Refer to FASTENING THE WISHBONE TO THE TOP OF THE SWIVEL BEARING .
• Refer to FASTENING THE BRAKE HOSE AND THE CABLE .
• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to RAISING THE FRONT SUBFRAME .
• Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
• Refer to REMOVING THE MOBILE LIFTING TABLE .
• Refer to FASTENING COOLANT HOSE TO THE FRONT SUBFRAME .
• Refer to SECURING THE TRANSMISSION OIL COOLING BRACKET .
• Refer to SECURING LEFT AND RIGHT SPRING STRUT HOLDERS ON THE LOWER WISHBONE .
• Refer to FASTENING THE BRAKE HOSE AND THE CABLE ON THE LEFT AND RIGHT .
• Refer to CONNECTING THE CONNECTOR TO THE LEFT AND RIGHT VERTICAL ACCELERATION SENSOR .
• Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
• Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
• Refer to ATTACHING THE WIRING HARNESS OF THE ACTIVE STABILIZER .
• Refer to FASTENING WIRING HARNESS TO THE EPS .
• Refer to IF INSTALLED: FASTENING THE AUXILIARY HEATER .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE LEFT AND RIGHT CRASH LEVER .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT, BOTTOM LEFT AND RIGHT .
• Refer to INSTALLING REINFORCEMENT STRUT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to REMOVING THE COMBUSTION ENGINE FROM THE INSTALLATION POSITION (INTAKE FILTER HOUSING REMOVED) .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM (DOOR SILL) AT LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
