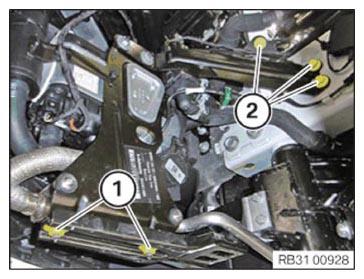

If installed: Fasten the auxiliary heater
- Position the stationary heating system.
- Tighten down screws (2)
.TIGHTENING TORQUES SPECIFICATION
Holder to body M8 Tightening torque 19 Nm - Tighten nuts (1)
.TIGHTENING TORQUES SPECIFICATION
Stationary heating system to holder M8 Tightening torque 19 Nm Installing the front section of the front wheel arch cover
NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Guide in the front section (1) of the wheel arch cover.
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Wheel arch cover Thermoplastic hexagon screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm
