Check/add front axle transmission oil
NOTE:
RISK OF DAMAGE
Damage to the front axle differential.
Failure to comply with the oil specifications can result in serious damage to the front axle differential.
Damage to the front axle differential.
Failure to comply with the oil specifications can result in serious damage to the front axle differential.
- Use only the approved front axle transmission oil.
NOTE:
TECHNICAL INFORMATION
Filling to the lower edge of the oil filler opening means that the front axle differentia is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 600 ml of oil.
Filling to the lower edge of the oil filler opening means that the front axle differentia is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 600 ml of oil.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Place oil collecting apparatus underneath.

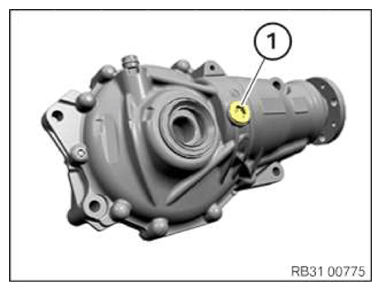

- Release the oil filler plug (1) .
- Drain and dispose of front differential oil.
- Replace (1)
screw plug.
Parts: Plug
- Tighten the oil filler plug (1)
.TIGHTENING TORQUE SPECIFICATIONS
Screw plug to front axle transmission M22
Replace screw plug with O-ring.Tightening torque 60 Nm NOTE: TECHNICAL INFORMATION
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity. - Use the special tool 2 460 340 to top up.
- When topping up a defined (measured) oil quantity, first fill the hose (1)
with oil. To do this, attach an adapter (2)
.
- Supplementing the oil level with the oil spray
- Follow repair instructions!
- Release the oil filler plug (1) .
- Fill the front axle transmission with front axle transmission oil.TECHNICAL DATA SPECIFICATION
Front axle transmission oil Front axle transmission filling capacity 600 ml - Replace (1)
screw plug.
Parts: Plug
- Tighten the oil filler plug (1)
.TIGHTENING TORQUE SPECIFICATIONS
Screw plug to front axle transmission M22
Replace screw plug with O-ring.Tightening torque 60 Nm
