Install left and right brake ventilation duct

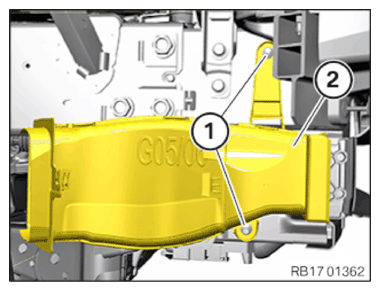

• Insert and install the brake ventilation duct (2)  on the right.
• Secure expanding rivet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

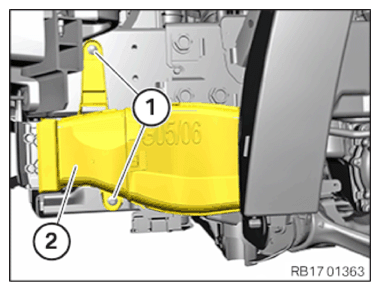

• Insert and install the brake ventilation duct (2)  on the left.
• Secure expanding rivet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Install the brake ventilation duct

• Insert and position the brake ventilation duct (2)  .
• Tighten the screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Wheel arch cover
  Thermoplastic hexagon screw
  	Tightening torque	2.6 Nm
  Plastic nut
  	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
