Installing the oil-level sensor

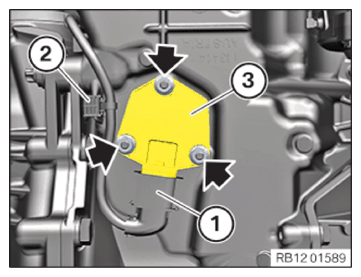

- Insert and install the oil-level sensor (3) .
- Tighten the nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Oil level sensor to oil sump | ||
| M6 hexagon nut | Joining torque | 2 Nm |
| Tightening torque | 8.5 Nm | |
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Secure clamps (2) .
Follow-up work
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to RAISING THE FRONT AXLE SUPPORT AND FASTENING IT .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT ON THE ANTI-ROLL BAR .
- Refer to FASTENING ELECTRIC COOLANT PUMP AND COOLANT HOSES TO THE FRONT AXLE SUPPORT .
- Refer to IF INSTALLED: CONNECTING THE VACUUM LINE OF THE ENGINE MOUNTS .
- Refer to ATTACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
- Refer to SECURING THE EPS WIRING HARNESS TO THE ELECTROMECHANICAL STEERING GEAR .
- Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
- Refer to LOWERING THE ENGINE AND DETACHING THE ENGINE BRIDGE .
- Refer to FASTENING THE ENGINE SUPPORT BRACKETS ON THE ENGINE MOUNTS ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER PANELS ON THE FRONT AXLE ON THE RIGHT AND LEFT .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING THE IGNITION COILS .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to CHECKING ENGINE OIL LEVEL .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
