When replacing the turbocharger: Dismount the oil coolant lines
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
TECHNICAL INFORMATION
For turbocharger damage: Check the pressure pipes, charge air cooler and intake plenum for foreign matter, damage and correct functionality.
If the oil return line is exchanged, then the connecting pipe to the oil sump must ALWAYS be cleaned, as the connecting pipe can coke.
For turbocharger damage: Check the pressure pipes, charge air cooler and intake plenum for foreign matter, damage and correct functionality.
If the oil return line is exchanged, then the connecting pipe to the oil sump must ALWAYS be cleaned, as the connecting pipe can coke.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to REMOVING BOTH FRONT-END STRUTS .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE INTAKE FILTER HOUSING (TENSION STRUT ON SHOCK TOWER REMOVED) .
- Refer to REMOVING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to REMOVING BOTTOM CLEAN AIR PIPE .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
- Refer to REMOVING THE OXYGEN SENSOR MONITOR .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM RIGHT AND LEFT COVERS .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING THE TORSION STRUT ON THE REAR LEFT AND RIGHT .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING CATALYTIC CONVERTER .
- Refer to REMOVING THE OIL RETURN LINE FOR THE TURBOCHARGER .
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

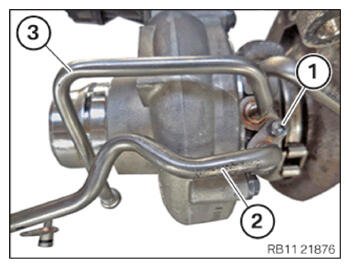

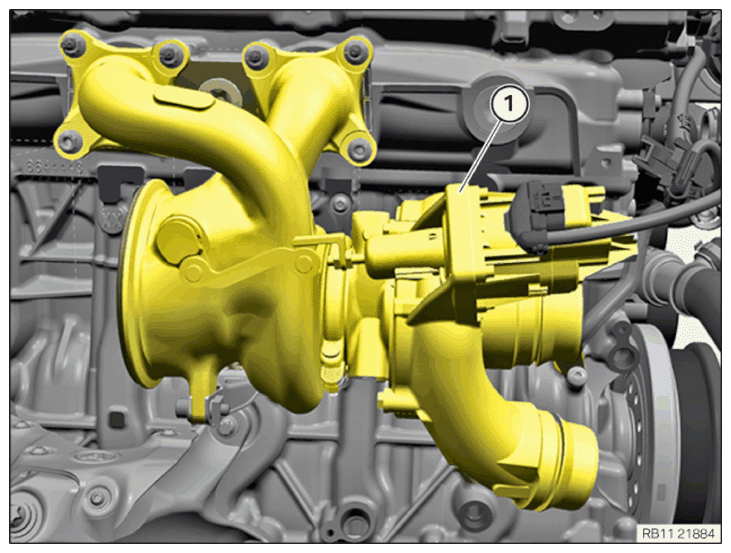

- Loosen screw (1) .
- Feed out and remove the coolant return line (2) for the turbocharger.
- Feed out and remove the oil feed line (3)
for the turbocharger.

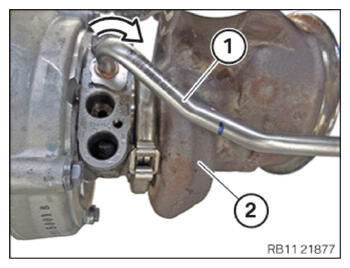

- Twist the coolant feed line (1)
for the turbocharger (2)
in the arrow direction
.

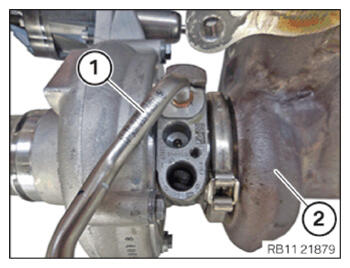

- Feed out and remove the coolant feed line (1)
for the turbocharger (2)
.

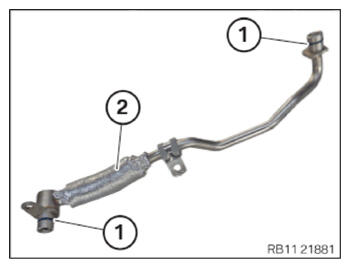

- Using the special tool 0 496 714 (00 9 030)
, replace the sealing rings (1)
on the coolant feed line (2)
.
Parts: Sealing ring

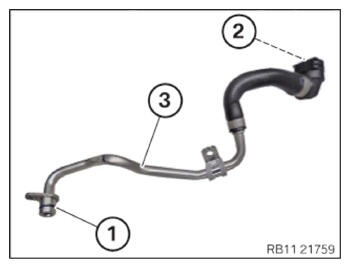

- Using the special tool 0 496 714 (00 9 030)
, replace the sealing rings (1)
on the coolant return line (3)
.
Parts: Sealing ring
- Check the sealing ring (2)
on the coolant return line (3)
for damage and if required, replace the coolant return line (3)
.

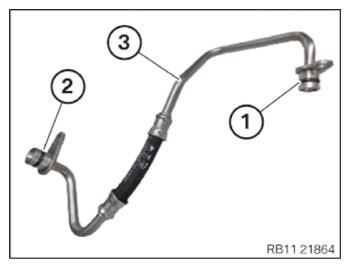

- Replace the sealing rings (1)
and (2)
at the oil feed line (3)
for the turbocharger using the special tool 0 496 714 (00 9 030)
.
Parts: Sealing ring
- Feed in and position the coolant feed line (1)
for the turbocharger (2)
.

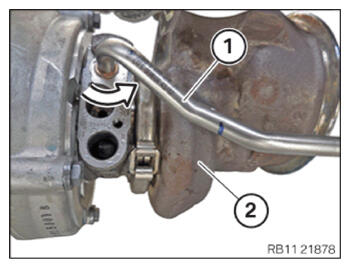

- Twist the coolant feed line (1) for the turbocharger (2) in the arrow direction .
Initial filling with the additive when replacing the turbocharger
NOTE:
RISK OF DAMAGE
Dry running due to insufficient initial filling of the turbocharger.
Damage to the turbocharger.
Dry running due to insufficient initial filling of the turbocharger.
Damage to the turbocharger.
- Be sure to do the initial filling when replacing the turbocharger.
- Fill the turbocharger with the matching additive (see applicable BMW parts catalogue).

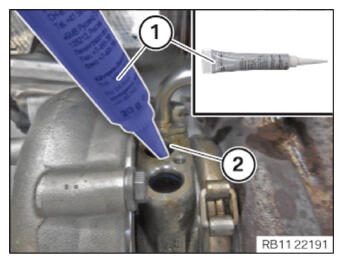

- Fill turbocharger additive (1) into the bore (2) of the oil feed line.
CONSUMABLE SPECIFICATIONS
| Turbocharger additive, gasoline MSP | 17 ml, Tube | 83192457276 |
- Feed in and install the oil feed line (3) for the turbocharger.
- Feed in and install the coolant return line (2) for the turbocharger.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant return line/oil feed line to turbocharger | ||
|---|---|---|
| M6 x 12 | tightening torque | 8 Nm |
