Removing the front bottom right and left covers
NOTE:
Description is for left component only. Procedure on the right side is identical.

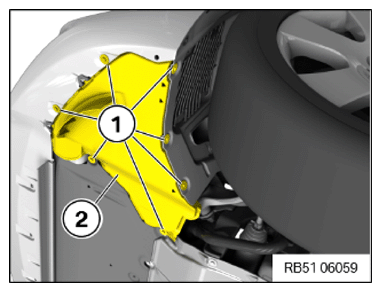

Removing the front bottom side cover
- Loosen screws (1).
- Guide out cover, front, bottom sideways (2) downwards.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
