Removing the underbody protection of the steering gear and thrust field respectively
Precondition
Underbody protection in the front partially released or removed.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.

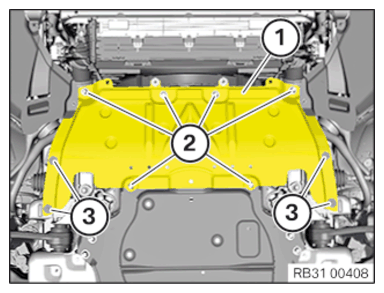

- Version A:
Loosen screws (3).
Loosen screws (2).
Guide out and remove the front thrust field (1).

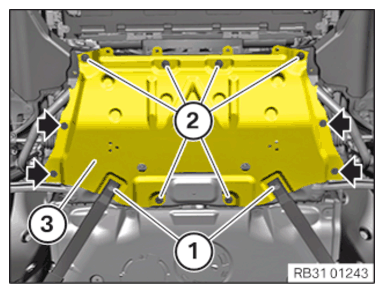

- Version B:
Loosen screws (1).
Remove screws (arrows).
Loosen screws (2).
Guide out and remove the front thrust field (3).

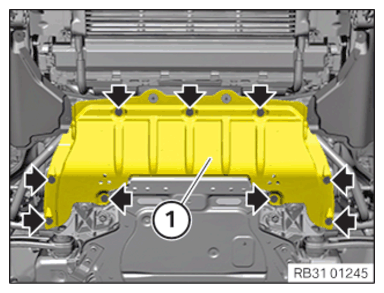

- Version C:
Remove screws (arrows).
Guide out the underbody protection of the steering gear (1) and remove.
