Remove bottom clean air pipe
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING TOP CLEAN AIR PIPE .
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

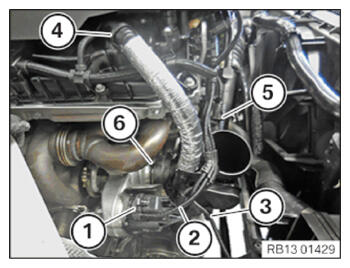

- Unlock plug connection (1) and disconnect.
- Unlock plug connection (2) and disconnect.
- Unlock and loosen clamp (3).
- Unlock and loosen engine ventilation line (4).
- Unlock and release tank vent line (5).
- Unlock and loosen clamp (6).
- Feed out lower clean air pipe and remove.
