Removing the torsion strut on the rear left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing rear torsion strut
NOTE:
TECHNICAL INFORMATION
Driving without torsion strut is prohibited.
Driving without torsion strut is prohibited.

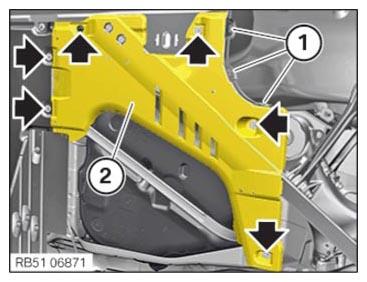

Removing the tank cover
- Loosen screws (1).
- Unscrew all bolts and nuts (arrows).
- Thread out the tank cover (2) and remove.

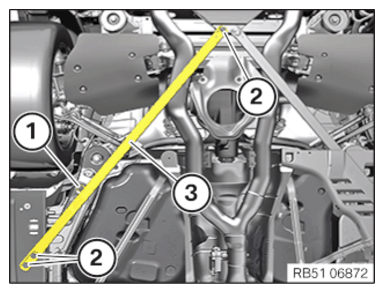

- Loosen nut (1).
- Loosen screws (2).
- Feed out and remove the torsion strut (3) at rear.
